Bell-crank lever turning a pull through 90°

What does a bell crank do? · Hardware · basis: Xem Studio design following Brown No. 126 (1868)

Also called: bell crank, bell crank lever, angle lever, palanca acodada, Winkelhebel

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pivot, links; stays the same: arms, ratio.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • An L-shaped lever on a pivot at its corner: a pull on one arm becomes a pull at right angles on the other. Force ratio = arm lengths (1 : 1 for 30 × 30 mm; the 20 × 40 crank gives 2 : 1).
  • Here the catalog 30 × 30 bell crank turns on a 623 bearing pressed in its Ø10 pocket, with 60 mm links on each arm.
  • Brown's No. 126; used in bell-pulls, control rods and brakes to change the direction of a push or pull.
  • Parts (each has its own page): bell-cranks, ball-bearings-metric, four-bar-links, dowel-pins-metric.
  • Brown's movement No. 126 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Bell-crank lever turning a pull through 90° size chart

parametervalue
arms30 × 30 mm at 90°
pivot623 bearing on Ø3 pin
links2 × 60 mm
ratio1 : 1

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 126: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bell-crank-lever-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bell-crank-lever-mechanism

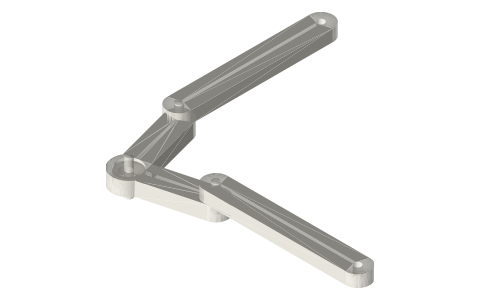

Bell-crank lever turning a pull through 90°, isometric render of a generated part
Render of bell-crank-lever-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

What does a bell crank do?

An L-shaped lever on a pivot at its corner: a pull on one arm becomes a pull at right angles on the other. Force ratio = arm lengths (1 : 1 for 30 × 30 mm; the 20 × 40 crank gives 2 : 1).
