Cone pulley Ø24 → Ø56 × 64, Ø8 bore

What is a cone pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: cone pulley, speed cone, conical pulley, polea cónica, Kegelscheibe

Exact dimensions. True size, with no tolerance added.

length
56.0 mm
width
56.0 mm
height
64.0 mm

Notes

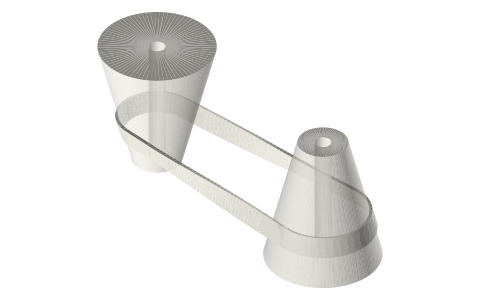

  • Straight cone from Ø24 to Ø56 over 64 mm (half-angle 14.04°), Ø8 bore. Two of them mounted head to tail give a speed ratio that changes smoothly as the belt is moved along.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cone pulley Ø24 → Ø56 × 64, Ø8 bore size chart

dimensionvalue
diametersØ24 → Ø56
length64 mm
half-angle14.04°
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 9: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cone-pulley-24-56x64-bore8pulley, axis Z, small end at z = 0STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cone-pulley-24-56x64-bore8

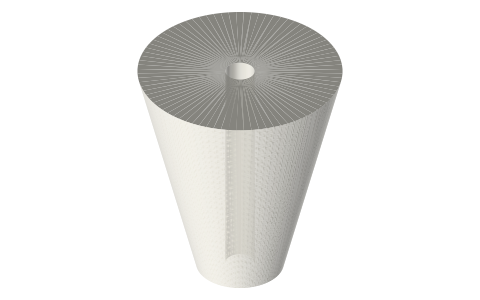

Cone pulley Ø24 → Ø56 × 64, Ø8 bore, isometric render of a generated part
Render of cone-pulley-24-56x64-bore8 from the free STEP; not to scale.

Fits with

Questions

What is a cone pulley?

Straight cone from Ø24 to Ø56 over 64 mm (half-angle 14.04°), Ø8 bore. Two of them mounted head to tail give a speed ratio that changes smoothly as the belt is moved along.
