Cone pulleys (speed cones) for gradually varied speed
How do cone pulleys vary speed? · Hardware · basis: Xem Studio design following Brown No. 9 (1868)
Also called: cone pulleys, speed cones, variable speed pulleys, poleas cónicas, Kegelscheiben (Kegeltrieb)
Exact dimensions. True size, with no tolerance added.
- sizes
- 5 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pulleys, centres; stays the same: ratio range, drawn at 20 mm; step to the nearest standard size (and redraw the hole or pocket it fits): belt.
- Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

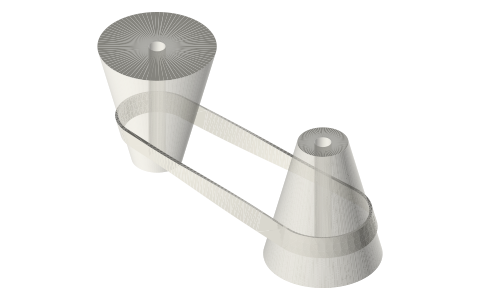

- Two identical cones mounted head to tail: sliding the belt along them changes the ratio smoothly, from r_small/r_large to r_large/r_small, while the sum of the two radii — and so the belt length, nearly — stays the same.
- Here Ø24–Ø56 × 64 cones at 110 mm; at 20 mm along, Ø34 drives Ø46, ratio 0.74. With straight cones an open belt is -1.54 mm slacker near the ends than in the middle (No. 10's curved cones fix that).
- Brown's No. 9 (cones for gradually increasing or decreasing speed, as in cotton machinery). The belt section lies flat on each cone; its strands twist between the two tilts.

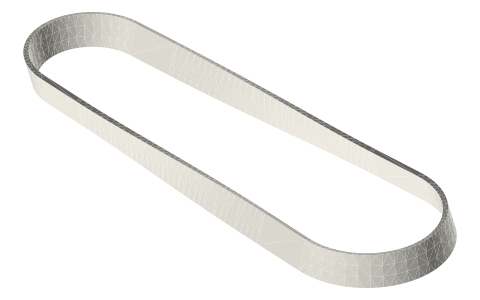

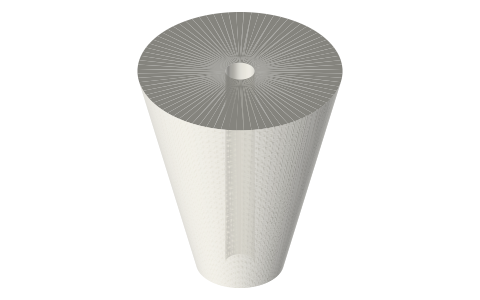

- Parts (each has its own page): cone-pulley-24-56x64-bore8, flat-belt-10x1-5-cone-pulleys-c110.
- Brown's movement No. 9 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Cone pulleys (speed cones) for gradually varied speed size chart
| parameter | value |
|---|---|
| pulleys | 2 × Ø24–Ø56 × 64, head to tail |
| centres | 110 mm |
| ratio range | 0.43 – 2.33 |
| drawn at 20 mm | ratio 0.74 |
| belt | 10 × 1.5, 345.99 mm |
