Conoid (curved cone) pulleys: varied speed with a belt of constant length

Why are the cones curved? · Hardware · basis: Xem Studio design following Brown No. 10 (1868)

Also called: conoid pulleys, curved speed cones, variable speed cone pulleys, poleas conoides, gewölbte Kegelscheiben

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pulleys, centres; stays the same: ratio range, drawn at 20 mm; step to the nearest standard size (and redraw the hole or pocket it fits): belt.
  • Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two straight cones head to tail keep r₁ + r₂ constant, which keeps a CROSSED belt the same length but not an open one: an open belt goes slack away from the middle. Curving the cones by the right amount makes the open-belt length exactly constant.
  • Here Ø24–Ø56 × 64 conoids at 110 mm; at 20 mm along, Ø27.9 drives Ø51.9, ratio 0.54. The belt length 346.65 mm is the same at every position (straight cones of the same size lose -4.64 mm near the ends).
  • Brown's No. 10 (cone pulleys of curved outline for gradually varying speed).

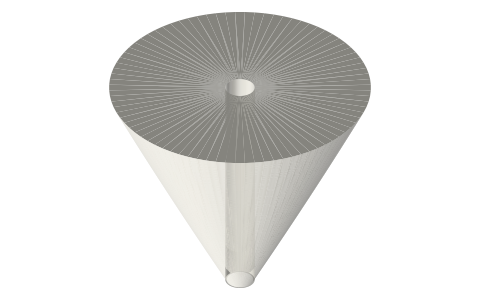

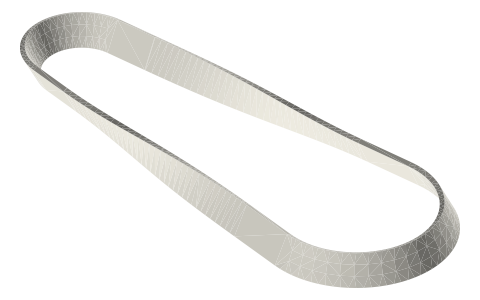

  • Parts (each has its own page): conoid-pulley-24-56x64-bore8, flat-belt-10x1-5-conoid-pulleys-c110.
  • Brown's movement No. 10 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Conoid (curved cone) pulleys: varied speed with a belt of constant… size chart

parametervalue
pulleys2 × Ø24–Ø56 × 64 conoids, head to tail
centres110 mm
ratio range0.43 – 2.33 (approx.)
drawn at 20 mmratio 0.54
belt10 × 1.5, 346.65 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 10: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
conoid-pulleys-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=conoid-pulleys-mechanism

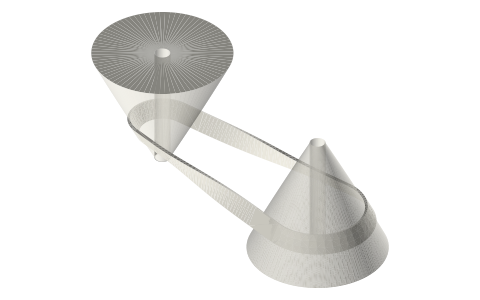

Conoid (curved cone) pulleys: varied speed with a belt of constant length, isometric render of a generated part
