Constant-breadth cam turning in a yoke (three strokes per turn)

How does a constant-breadth cam reciprocate a bar? · Hardware · basis: Xem Studio design following Brown No. 276 (1868)

Also called: constant breadth cam, reuleaux cam yoke, three throw cam, leva de anchura constante en yugo, Gleichdick im Rahmen

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: breadth, stroke.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A cam of constant breadth (a Reuleaux triangle with rounded corners) turns about its centre between two parallel faces of a yoke exactly its breadth apart, so it touches both at every angle and drives the yoke both ways. Its distance to each face changes from the corner radius to the flank radius: the yoke moves 4.64 mm to and fro three times per turn of the cam.
  • Breadth 40 (side 30, corners R5); drawn at 20°, the yoke 2.06 mm from centre.
  • Brown's No. 276 (cam giving a reciprocating motion to a bar); the corner-pivoted triangle of No. 91 gives one long stroke with dwells instead.

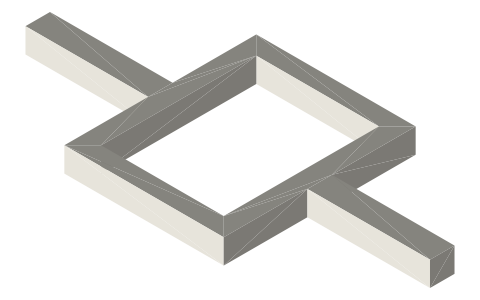

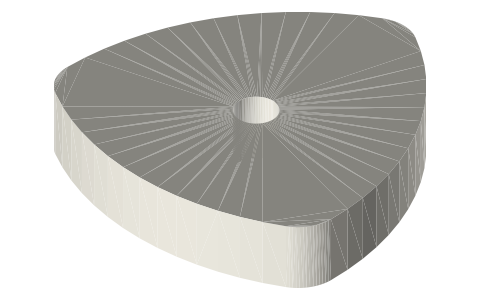

  • Parts (each has its own page): constant-breadth-cam-s30-r5-bore5, constant-breadth-cam-yoke-40, dowel-pins-metric.
  • Brown's movement No. 276 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Constant-breadth cam turning in a yoke size chart

parametervalue
breadth40 mm
pivotcentre
stroke4.64 mm
strokes per turn3

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 276: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
constant-breadth-cam-yoke-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=constant-breadth-cam-yoke-mechanism

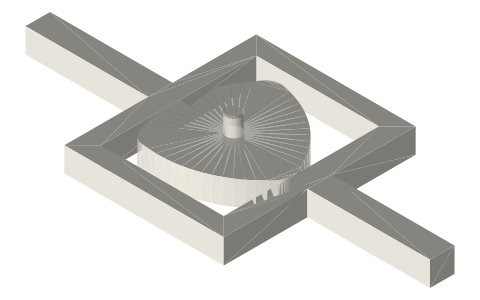

Constant-breadth cam turning in a yoke (three strokes per turn), isometric render of a generated part
