Link webs: a second crank throw on the first crank pin

How do I add a second crank throw on an existing crank pin? · Hardware · basis: Design values (pin radii and angles set by the engines' kinematics); Ø3 dowel pins (ISO 8734)

Also called: two pin crank, crank web 90 degree, overhung double crank

Long Earth Society build part. The second throw on my rolling-diaphragm beta and gamma. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • The web is pressed on crank pin 1 (which is pressed in the crank disc) and carries crank pin 2. The power con-rod runs on pin 1 between the disc and the web; the displacer drive runs on pin 2 outside the web. The shaft ends at the disc, so nothing crosses the con-rods' path.
  • Beta web: pin 2 at the same 10 mm radius, 90° from pin 1. Gamma web: pin 2 at 7 mm, 45° from pin 1; with the bell crank's own lag the displacer leads the power piston's volume by close to a quarter turn.
  • Turn the web over to swap which way pin 2 leads: the web is the same both ways.

Link webs: a second crank throw on the first crank pin size chart

partpin1 radius (mm)pin2 radius (mm)angle (°)thickness (mm)
rd-link-web-r10-9010.010.090.014.0
rd-link-web-r7-4510.07.045.014.0

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
pin holesØ3 (two)Ø3 crank pins (dowels)pressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rd-link-web-r10-90link web 14 thick: Ø3 press holes for crank pin 1 (radius 10) and pin 2 (radius 10) 90° apart about the shaft axis, Ø12 endsSTEP · STL
rd-link-web-r7-45link web 14 thick: Ø3 press holes for crank pin 1 (radius 10) and pin 2 (radius 7) 45° apart about the shaft axis, Ø12 endsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crank-link-webs

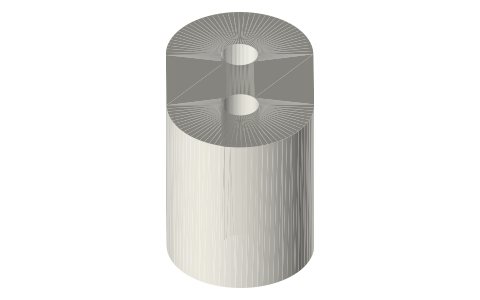

Link webs: a second crank throw on the first crank pin, isometric render of a generated part
Render of rd-link-web-r7-45 from the free STEP; not to scale.

Fits with

Questions

Which way does the engine turn?

The way that makes the displacer lead the power piston; turning the web over reverses it.
