Counterweighted crank discs, Ø5 bore, 10 to 30 mm stroke
How is a counterweighted crank disc shaped? · Hardware · basis: Crank disc ending just past the pin and thickened opposite it; pin at stroke / 2, Ø5 bore, M3 grub
Also called: counterweighted crank disc, stirling engine counterweight, balanced crank disc, crank balance small engine
Long Earth Society build part. Balanced cranks for the 2 in gamma. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 5 in table
Notes

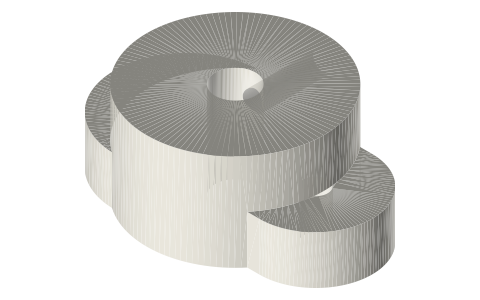

- A 6 mm disc (Ø32, 32, 34, 39, 44 for 10–30 mm stroke) with the Ø3 pin hole at half the stroke. On the pin side the disc ends 6 mm past the pin centre, with a Ø10 boss round the pin.
- Opposite the pin a raised segment 4.8 thick (10.8 overall) carries the counterweight; the description sizes it at about 50 % of a con-rod and piston at the pin radius.
- Ø5 bore and a radial Ø2.5 hole (M3 tap drill) at mid-thickness for a grub on the shaft's flat.
- Balance condition: m_cw × r_cw = m_rotating × r_pin + 0.5 × m_reciprocating × r_pin. A crank that stops at any angle when spun bare is statically balanced; at 200–600 rpm that is enough.
Counterweighted crank discs, Ø5 bore, 10 to 30 mm stroke size chart
| file | stroke | pin offset | disc Ø | thickness | envelope |
|---|---|---|---|---|---|
| cw-crank-disc-stroke10 | 10 | 5.0 | 32 | 6 / 10.8 | 27 × 32 |
| cw-crank-disc-stroke15 | 15 | 7.5 | 32 | 6 / 10.8 | 29.5 × 32 |
| cw-crank-disc-stroke20 | 20 | 10.0 | 34 | 6 / 10.8 | 33 × 34 |
| cw-crank-disc-stroke25 | 25 | 12.5 | 39 | 6 / 10.8 | 38 × 39 |
| cw-crank-disc-stroke30 | 30 | 15.0 | 44 | 6 / 10.8 | 43 × 44 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| disc bore | Ø5 | Ø5 crankshaft (M3 grub) | slide | cw-crank-disc-* |
| disc pin hole | Ø3 | Ø3 crank pin | press | cw-crank-disc-* |
| disc grub hole | Ø2.5 | M3 tap drill | designed | cw-crank-disc-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Engine balance | web | CC BY-SA 4.0 (text) |
| Wikipedia | Crankshaft | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 5 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| cw-crank-disc-stroke10 | counterweighted crank disc, 10 mm stroke (pin at 5.0), Ø5 bore, M3 grub, mass opposite the pin ≈ 50% of the con-rod+piston at the pin radius | STEP · STL |
| cw-crank-disc-stroke15 | counterweighted crank disc, 15 mm stroke (pin at 7.5), Ø5 bore, M3 grub, mass opposite the pin ≈ 50% of the con-rod+piston at the pin radius | STEP · STL |
| cw-crank-disc-stroke20 | counterweighted crank disc, 20 mm stroke (pin at 10.0), Ø5 bore, M3 grub, mass opposite the pin ≈ 50% of the con-rod+piston at the pin radius | STEP · STL |
| cw-crank-disc-stroke25 | counterweighted crank disc, 25 mm stroke (pin at 12.5), Ø5 bore, M3 grub, mass opposite the pin ≈ 50% of the con-rod+piston at the pin radius | STEP · STL |
| cw-crank-disc-stroke30 | counterweighted crank disc, 30 mm stroke (pin at 15.0), Ø5 bore, M3 grub, mass opposite the pin ≈ 50% of the con-rod+piston at the pin radius | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=counterweighted-crank-discs

How it fits
Goes in or on
Connects to
Alternatives
You might also need
Questions
How much counterweight does a single-cylinder engine need?
Enough that mass × radius opposite the pin equals the rotating mass plus about half the reciprocating mass at the pin radius.
Why does my Stirling engine walk across the table?
The crank is out of balance: the piston and con-rod pull outward once a turn. A counterweight opposite the pin cancels it.
