Cross lap joint (cross halving)

What are the proportions of a cross lap joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: cross lap joint, cross halving joint, middle lap joint, egg crate joint, cross lap joint dimensions, junta en cruz a media madera, ensamble cruzado, Kreuzüberblattung

Exact dimensions. True size, with no tolerance added.

length
80.0 mm
width
80.0 mm
height
20.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • Two members cross flush: each is notched to half its depth across the other's width.
  • Print both parts notch up; the notch floors are flat tops, so no supports are needed.

Cross lap joint size chart

dimensionvalue
stock20 × 20 mm square
partspart a, part b
notch width20 mm (the other member's width)
notch depth10 mm on each part
assemblesB drops onto A from above
holdsboth members against sliding along each other

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cross-lap-joint-part-aMember A: notch in the top halfSTEP · STL
cross-lap-joint-part-bMember B: notch in the bottom halfSTEP · STL
cross-lap-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cross-lap-joint

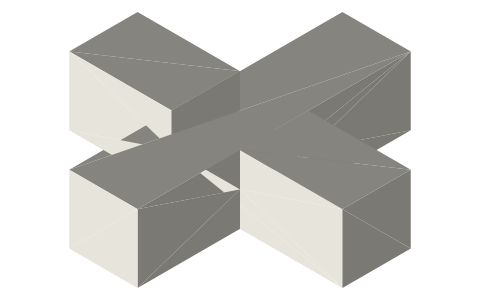

Cross lap joint (cross halving), isometric render of a generated part
Render of cross-lap-joint-assembled from the free STEP; not to scale.

Fits with

Questions

How deep is each notch in a cross lap?

Half the stock: 10 mm on each member, 20 mm wide.
