Crossed helical (spiral) gears on shafts at 90°, 16 : 16

How do crossed helical gears connect shafts that do not meet? · Hardware · basis: Xem Studio design following Brown No. 43 (1868)

Also called: crossed helical gears, spiral gears, skew gears, screw gears, engranajes helicoidales cruzados, Schraubradgetriebe

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: centre distance; stays the same: helix; step to the nearest standard size (and redraw the hole or pocket it fits): normal module, shaft angle.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two helical gears of the same hand on shafts that cross without meeting: the shaft angle equals the sum of the helix angles (45° + 45° = 90° here). The teeth touch at a point and slide along each other, so they suit light loads — instrument drives, distributor and oil-pump drives.
  • Normal module 1.5, 16 teeth, 45° right hand on both: pitch Ø33.94 each (m_n·N / cos β), shafts 33.94 mm apart; ratio 1 : 1 (N₂/N₁, not the diameters). The second gear's phase was found by search to the touching position.
  • Brown's No. 43 (gears transmitting rotary motion between shafts arranged obliquely, another form).

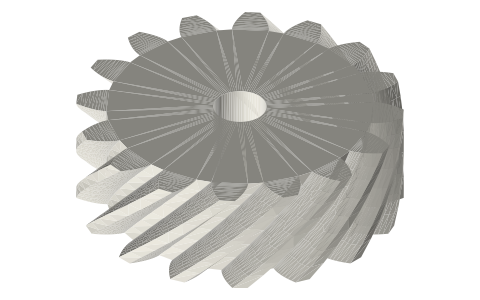

  • Parts (each has its own page): crossed-helical-gear-mn1-5-16t-beta45-rh-bore6, linear-shafts-h6.
  • Brown's movement No. 43 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Crossed helical (spiral) gears on shafts at 90°, 16 : 16 size chart

parametervalue
normal module1.5
teeth16 / 16
helix45° RH both
shaft angle90°, offset
centre distance33.94 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 43: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crossed-helical-gears-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crossed-helical-gears-mechanism

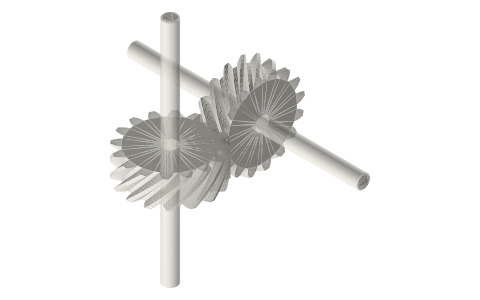

Crossed helical (spiral) gears on shafts at 90°, 16 : 16, isometric render of a generated part
Render of crossed-helical-gears-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How do crossed helical gears connect shafts that do not meet?

Two helical gears of the same hand on shafts that cross without meeting: the shaft angle equals the sum of the helix angles (45° + 45° = 90° here). The teeth touch at a point and slide along each other, so they suit light loads — instrument drives, distributor and oil-pump drives.
