Crosshead Ø8 × 24 for a Ø3 piston rod

What are the dimensions of a crosshead for an 8 mm guide? · Hardware · basis: Ø8 slider in the Ø8 guide (fit: run); clevis slot at the 5 mm con-rod thickness

Also called: crosshead design model engine, crosshead 8mm, stirling crosshead stl

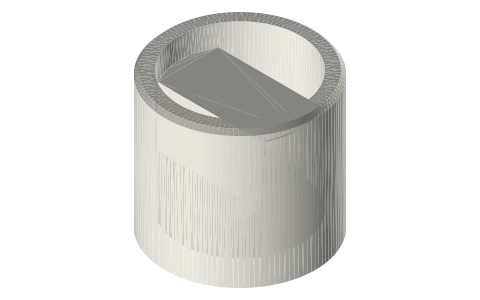

Long Earth Society build part. The power piston and liner on the LES gamma. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A Ø8 × 24 slider on the Ø3 piston rod (Ø3 bore, fit: slide) that runs in the Ø8 crosshead guide (fit: run).
  • A 5 mm slot, 13 deep, takes the 5 mm con-rod end (fit: run); a Ø3 hole through both cheeks 5 mm from the top takes the wrist pin (fit: press).
  • The con-rod's sideways push lands on the crosshead and guide, so the piston moves only along its axis.

Crosshead Ø8 × 24 for a Ø3 piston rod size chart

parametervalue
sliderØ8 × 24
rod boreØ3
clevis slot5 × 10 deep
wrist-pin holeØ3, 5 from top

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles

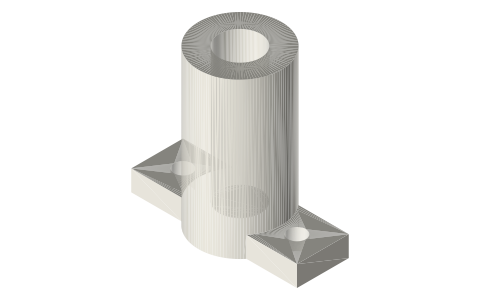

crosshead ODØ8crosshead-guide bore (slides in it)runcrosshead-8mm*
crosshead rod boreØ3Ø3 piston rodslidecrosshead-8mm*
crosshead clevis slot55 mm con-rod endruncrosshead-8mm*

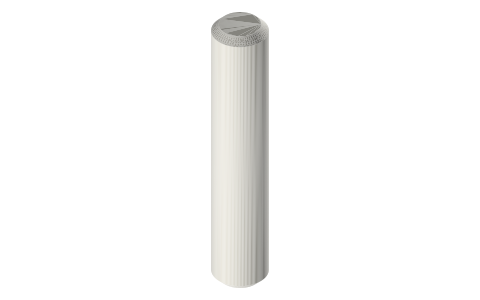

crosshead wrist-pin holeØ3wrist-pin-3x16presscrosshead-8mm*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaCrossheadwebCC BY-SA 4.0 (text)
WikipediaPistonwebCC BY-SA 4.0 (text)
James R. SenftMiniature Stirling engine piston fits (LTD book)bookreference verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crosshead-8mm-rod3crosshead: Ø8 × 24 slider on a Ø3 piston rod, 5 mm clevis slot 13 deep for the con-rod (floor 8 below the pin) and a Ø3 wrist-pin hole 5 below the top (keeps side load off the piston)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crosshead-8mm

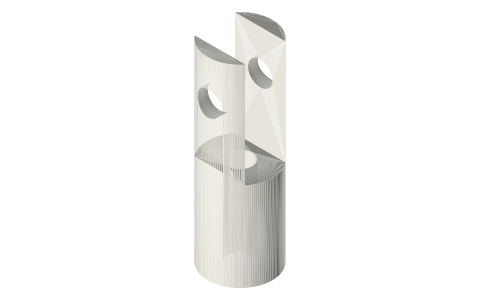

Crosshead Ø8 × 24 for a Ø3 piston rod, isometric render of a generated part
Render of crosshead-8mm-rod3 from the free STEP; not to scale.

Questions

Why use a crosshead on a Stirling engine?

It takes the con-rod's side load so the piston only moves axially and keeps its seal round.

What con-rod fits the crosshead?

One 5 mm thick, in the 5 mm clevis slot on a Ø3 wrist pin.
