Pistons Ø16, 20, 25 and 30 with a Ø3 wrist-pin boss
What small piston has a 3 mm wrist pin? · Hardware · basis: Piston OD = liner bore (fit: run), length 0.9 × bore; Ø3 rod hole and Ø3 wrist-pin hole
Also called: stirling power piston, power piston 20 mm, piston with wrist pin

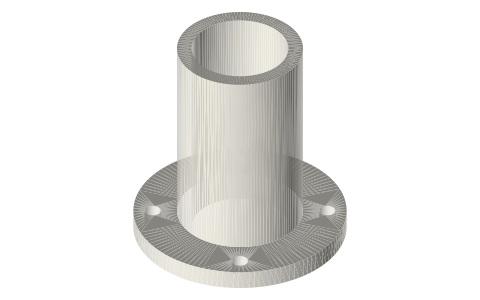

Long Earth Society build part. The power piston and liner on the LES gamma. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 4 in table
Notes

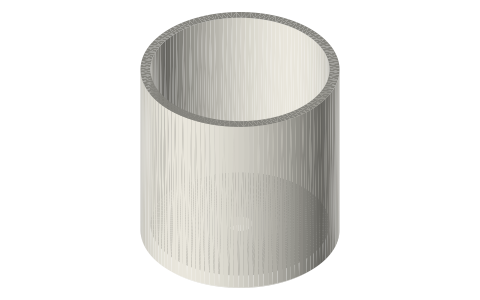

- The piston for the flanged liners, drawn at the liner bore exactly: Ø16 × 14, Ø20 × 18, Ø25 × 22, Ø30 × 27, with a 0.5 chamfer at the crown.
- Hollow with 2 mm walls; its closed end has a Ø3 hole (fit: slide) for a Ø3 piston rod.
- Inside the -blank piston, a wrist-pin bar across the bore carries a Ø3 hole (fit: press) at 0.4 × length + 4 from the closed end.
- Two kinds per bore: the -blank piston has a Ø3 rod hole in its crown and a solid wrist-pin bar (for a crosshead and piston rod); the -trunk piston has a closed 2 mm crown and two wrist-pin bosses 7 mm apart, so a 5 mm con-rod's small end (R7 eye) goes straight on its Ø3 wrist pin with 1 mm each side.
Pistons Ø16, 20, 25 and 30 with a Ø3 wrist-pin boss size chart
| file | diameter | length | rod hole | wrist-pin hole |
|---|---|---|---|---|
| piston-16x14-blank | 16 | 14 | 3 | 3 |
| piston-20x18-blank | 20 | 18 | 3 | 3 |
| piston-25x22-blank | 25 | 22 | 3 | 3 |
| piston-30x27-blank | 30 | 27 | 3 | 3 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| piston OD in the liner | Ø16 / Ø20 / Ø25 / Ø30 (= liner bore) | liner bore (lapped clearance seal) | run | piston-* |
| piston rod hole | Ø3 | Ø3 piston rod | slide | piston-* |
| piston wrist-pin hole | Ø3 | wrist-pin-3x16 | press | piston-* |
| trunk-piston boss gap | 7 | 5 mm con-rod small end, R7 eye (no contact) | designed | piston-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Crosshead | web | CC BY-SA 4.0 (text) |
| Wikipedia | Piston | web | CC BY-SA 4.0 (text) |
| James R. Senft | Miniature Stirling engine piston fits (LTD book) | book | reference verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 8 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| piston-16x14-blank | piston Ø16 (= the liner bore; clearance-seal running fit) × 14: Ø3 rod hole and a Ø3 wrist-pin boss | STEP · STL |
| piston-16x14-trunk | trunk piston Ø16 (= the liner bore) × 14: closed 2 mm crown, open skirt, two wrist-pin bosses 7 apart for a 5 mm con-rod's small end, Ø3 wrist pin across the bore 9.6 above the crown face | STEP · STL |
| piston-20x18-blank | piston Ø20 (= the liner bore; clearance-seal running fit) × 18: Ø3 rod hole and a Ø3 wrist-pin boss | STEP · STL |
| piston-20x18-trunk | trunk piston Ø20 (= the liner bore) × 18: closed 2 mm crown, open skirt, two wrist-pin bosses 7 apart for a 5 mm con-rod's small end, Ø3 wrist pin across the bore 11.2 above the crown face | STEP · STL |
| piston-25x22-blank | piston Ø25 (= the liner bore; clearance-seal running fit) × 22: Ø3 rod hole and a Ø3 wrist-pin boss | STEP · STL |
| piston-25x22-trunk | trunk piston Ø25 (= the liner bore) × 22: closed 2 mm crown, open skirt, two wrist-pin bosses 7 apart for a 5 mm con-rod's small end, Ø3 wrist pin across the bore 12.8 above the crown face | STEP · STL |
| piston-30x27-blank | piston Ø30 (= the liner bore; clearance-seal running fit) × 27: Ø3 rod hole and a Ø3 wrist-pin boss | STEP · STL |
| piston-30x27-trunk | trunk piston Ø30 (= the liner bore) × 27: closed 2 mm crown, open skirt, two wrist-pin bosses 7 apart for a 5 mm con-rod's small end, Ø3 wrist pin across the bore 14.8 above the crown face | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=power-piston

How it fits
Goes in or on
Connects to
Alternatives
Questions
What size piston goes in the 20 mm liner?
Ø20 × 18, drawn at the bore; the fit is run (see Mating features).
Does the piston need a crosshead?
With a crosshead the piston only moves axially; trunk style, the con-rod goes straight on the wrist pin, fine for rods at least 4 × the stroke.
