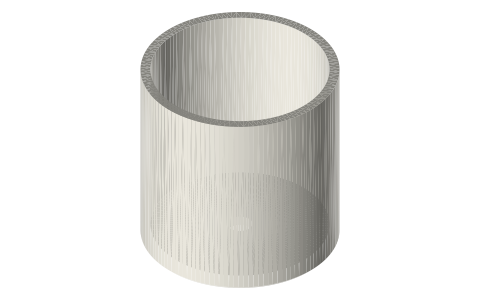

Pistons Ø29.9 × 30 and Ø39.9 × 40
What piston fits a 30 or 40 mm cylinder liner? · Hardware · basis: Beta free-piston layout; piston drawn at liner bore − 0.1 (0.05 mm radial clearance-seal gap as drawn)
Also called: free piston stirling piston, clearance seal piston, power piston 40 mm
Long Earth Society build part. The LES free-piston test bed: Ø40 core on flexures in a 2 in tri-clamp vessel. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- The ring-less power piston of the free-piston core: Ø29.9 × 30 for the Ø30 liner, Ø39.9 × 40 for the Ø40.
- As drawn it is 0.1 mm under the bore, a 0.05 mm radial gap: the seal is that gap, with no rings.
- Hollow with 2 mm walls, open at the top, with a Ø5 bore (fit: slide) for the Ø5 rod in its closed end.
Pistons Ø29.9 × 30 and Ø39.9 × 40 size chart
| file | diameter | length | liner bore | radial gap | rod bore |
|---|---|---|---|---|---|
| power-piston-30x30 | 29.9 | 30 | 30 | 0.05 | 5 |
| power-piston-40x40 | 39.9 | 40 | 40 | 0.05 | 5 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| rod bores | Ø5 | Ø5 rod | slide | all |
| power piston in the liner | Ø30 / Ø40 (= liner bore) | cylinder liner bore Ø30 / Ø40 | run | power-piston-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Free-piston Stirling engine design and analysis (RE-1000 test results) (1984) | US Government work, public domain | |
| NASA (NTRS, public domain) | Dynamics of free-piston Stirling engines (1987) | US Government work, public domain | |
| Wikipedia | Free-piston engine | web | CC BY-SA 4.0 (text) |
| Wikipedia | Beale number | web | CC BY-SA 4.0 (text) |
| Ohio University | Stirling cycle machine analysis (Urieli), free online | web | Author's site |
| Long Earth Society | Engine builds | web, video | LES site |
