Piston stop bumpers Ø30 and Ø40 × 6
What bumper stops a piston at the end of its stroke? · Hardware · basis: OD = liner bore (fit: press); recess 0.6 × bore
Also called: free piston stirling stop, piston bumper 40mm, end stop bumper
Long Earth Society build part. The LES free-piston test bed: Ø40 core on flexures in a 2 in tri-clamp vessel. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes

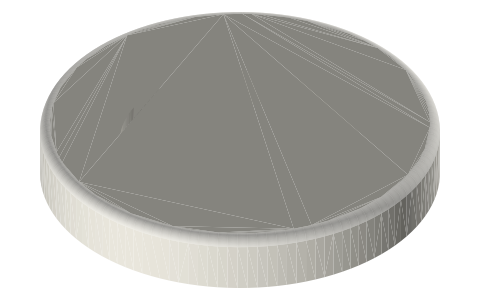

- An end stop for the free-piston core: Ø30 or Ø40 (the liner bore, fit: press) × 6 tall, a 2 mm closed face over a 4 mm deep recess of 0.6 × the bore (Ø18 / Ø24), with a 1 mm rounded edge.
- One at each end of the stroke; the stroke is kept to 85 % of the free travel between them. Over-stroke, when the alternator load drops, is the usual way a free-piston engine fails.
Piston stop bumpers Ø30 and Ø40 × 6 size chart
| file | OD | height | recess | face |
|---|---|---|---|---|
| stop-bumper-30 | 30 | 6 | Ø18 × 4 | 2 |
| stop-bumper-40 | 40 | 6 | Ø24 × 4 | 2 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| rod bores | Ø5 | Ø5 rod | slide | all |
| stop bumper OD | Ø30 / Ø40 | liner bore | press | stop-bumper-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Free-piston Stirling engine design and analysis (RE-1000 test results) (1984) | US Government work, public domain | |
| NASA (NTRS, public domain) | Dynamics of free-piston Stirling engines (1987) | US Government work, public domain | |
| Wikipedia | Free-piston engine | web | CC BY-SA 4.0 (text) |
| Wikipedia | Beale number | web | CC BY-SA 4.0 (text) |
| Ohio University | Stirling cycle machine analysis (Urieli), free online | web | Author's site |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| stop-bumper-30 | end-stop bumper Ø30 OD (= the Ø30 bore) × 6 | STEP · STL |
| stop-bumper-40 | end-stop bumper Ø40 OD (= the Ø40 bore) × 6 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=piston-stop-bumper

How it fits

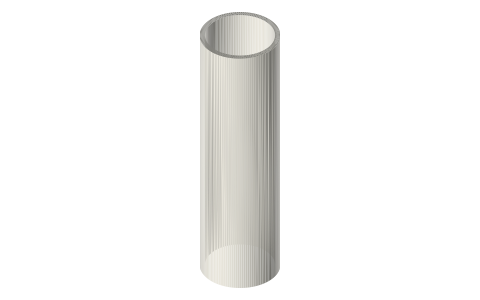

Goes in or on
Connects to

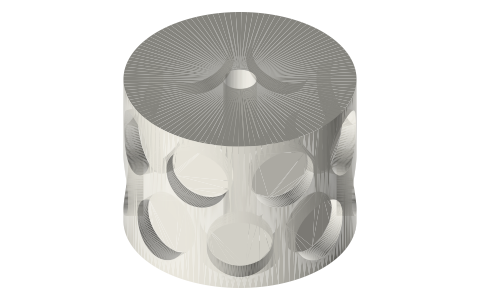

You might also need
Questions
What stops a free-piston engine from over-stroking?
The alternator load first; bumpers at both ends of the stroke for when the load drops, with the stroke kept to 85 % of the free travel.
How big is the stop bumper for a 40 mm bore?
Ø40 × 6 with a Ø24 × 4 recess.
