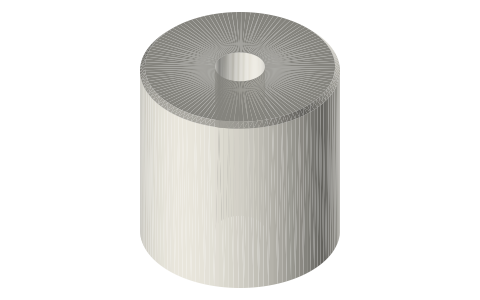

Small pistons Ø14.9 × 15 and Ø19.9 × 20
What small piston fits a 15 or 20 mm bore? · Hardware · basis: Gas spring k = γ·p·A² / V; piston drawn at bounce-space bore − 0.1 (0.05 mm radial gap as drawn)
Also called: gas spring stirling, gas spring piston size, bounce space piston
Long Earth Society build part. The LES free-piston test bed: Ø40 core on flexures in a 2 in tri-clamp vessel. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- The small piston on the rod that compresses a sealed bounce space and makes a gas spring: Ø14.9 × 15 for a Ø15 bore, Ø19.9 × 20 for a Ø20 bore.
- Solid, with a Ø5 bore (fit: slide) for the rod and 0.5 mm chamfers. As drawn it is 0.1 mm under its bore, a 0.05 mm radial gap.
- Stiffness k = γ·p·A²/V: the Ø20 piston at 1 bar with 20 cm³ of bounce space gives about 690 N/m; a smaller volume is stiffer.
Small pistons Ø14.9 × 15 and Ø19.9 × 20 size chart
| file | diameter | length | bore it runs in | rod bore | k at 1 bar, 20 cm³ |
|---|---|---|---|---|---|
| gas-spring-piston-15x15 | 14.9 | 15 | 15 | 5 | ≈ 220 N/m |
| gas-spring-piston-20x20 | 19.9 | 20 | 20 | 5 | ≈ 690 N/m |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| rod bores | Ø5 | Ø5 rod | slide | all |
| gas-spring piston in its bore | Ø15 / Ø20 (= bore) | Ø15 / Ø20 bounce-space bore | run | gas-spring-piston-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Free-piston Stirling engine design and analysis (RE-1000 test results) (1984) | US Government work, public domain | |
| NASA (NTRS, public domain) | Dynamics of free-piston Stirling engines (1987) | US Government work, public domain | |
| Wikipedia | Free-piston engine | web | CC BY-SA 4.0 (text) |
| Wikipedia | Beale number | web | CC BY-SA 4.0 (text) |
| Ohio University | Stirling cycle machine analysis (Urieli), free online | web | Author's site |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| gas-spring-piston-15x15 | gas-spring piston Ø15 (= the Ø15 bounce-space bore; clearance-seal running fit) × 15, Ø5 rod bore | STEP · STL |
| gas-spring-piston-20x20 | gas-spring piston Ø20 (= the Ø20 bounce-space bore; clearance-seal running fit) × 20, Ø5 rod bore | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=gas-spring-piston

How it fits
Connects to
Alternatives
You might also need
Questions
How stiff is a gas spring?
K = γ·p·A²/V; Ø20 at 1 bar with 20 cm³ gives about 690 N/m.
What keeps a gas spring's mean position from drifting?
Centring ports: two 0.5 mm holes the piston uncovers at mid-stroke.
