Planar spiral flexure bearing leaves: Ø40 to Ø120, 3-arm and 2-arm, 0.5 and 2 mm
What is a spiral flexure bearing and what are its dimensions? · Hardware · basis: Archimedean planar springs as on Sunpower / NASA free-piston Stirling convertors; hub Ø = max(bore + 8, 0.22 OD), rim 0.12 OD, arms sweep 330° (2-arm 350°)
Also called: flexure bearing stirling, spiral flexure spring dxf, planar spring design, free piston stirling flexure, nasa flexure bearing
Used in Long Earth Society builds. Designing a free-piston Stirling engine · Laser-cut linear flexure bearing
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 5 in table
Notes
- A flexure bearing leaf: a flat spring with a hub, spiral arms and a rim. Stacked leaves let a piston move axially while holding it on centre, so it runs in a clearance seal with no contact.
- Sizes Ø40, 60, 80, 100, 120. Each has a 3-arm leaf 0.5 mm thick (with a DXF), the same 3-arm leaf 2.0 mm thick, and a 2-arm leaf 0.5 mm thick (with a DXF). 3-arm arms sweep 330°, 2-arm 350°, from the hub to the rim.
- Hub Ø12 / 13.2 / 17.6 / 22 / 26.4 with bore Ø4 / 5 / 5 / 8 / 8; rim width 0.12 × OD; three Ø3.2 rim holes on a circle 0.88 × OD.
- Axial stiffness per leaf scales with E·t³·w / L³ (L = arm length), so the 2.0 mm leaf is 64 times the 0.5 mm leaf in the same material. Natural frequency of the suspended mass: f = (1/2π)√(k/m).
- Three arms give equal radial stiffness in every direction; two-arm leaves are softer axially but let the hub tilt.
Planar spiral flexure bearing leaves: Ø40 to Ø120, 3-arm and 2-arm… size chart
| od (mm) | hub (mm) | rim (mm) | arm w (mm) | bore (mm) | arm radial span (mm) | rim hole circle (mm) |
|---|---|---|---|---|---|---|
| 40 | 12 | 4.8 | 1.6 | 4 | 9.2 | 35.2 |
| 60 | 13.2 | 7.2 | 2.0 | 5 | 16.2 | 52.8 |
| 80 | 17.6 | 9.6 | 2.5 | 5 | 21.6 | 70.4 |
| 100 | 22.0 | 12.0 | 3.0 | 8 | 27.0 | 88.0 |
| 120 | 26.4 | 14.4 | 3.5 | 8 | 32.4 | 105.6 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|

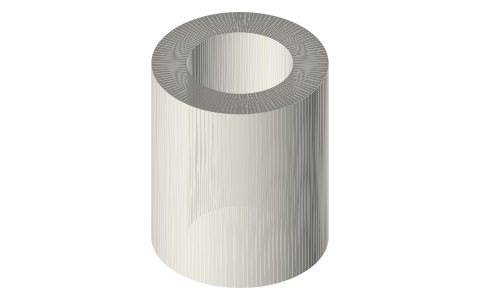

| leaf hub bore | Ø4 / Ø5 / Ø8 | rod, tube or centring bush | slide | flexure-* |
| rim holes | Ø3.2 | M3 screws (clearance) | designed | flexure-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Free-piston Stirling convertor flexure bearing development and life testing (2005) | US Government work, public domain | |
| NASA (NTRS, public domain) | Flexure bearing design for free-piston Stirling engines (1986) | US Government work, public domain | |
| NASA (NTRS, public domain) | Advanced Stirling Radioisotope Generator (ASRG) engineering unit (2011) | US Government work, public domain | |
| Wikipedia | Flexure bearing | web | CC BY-SA 4.0 (text) |
| Sunpower (AMETEK) | Free-piston Stirling technology overview | web | Sunpower site verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 15 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| flexure-40-3arm-w1.6-t0.5 | planar spiral flexure Ø40, 3 arms 1.6 wide, 0.5 thick (DXF outline included), hub Ø12 bore Ø4, 3 × Ø3.2 rim holes on R17.6 | STEP · STL · DXF |
| flexure-40-3arm-w1.6-t2 | planar spiral flexure Ø40, 3 arms 1.6 wide, 2.0 thick, hub Ø12 bore Ø4, 3 × Ø3.2 rim holes on R17.6 | STEP · STL |
| flexure-40-2arm-w1.6-t0.5 | 2-arm variant Ø40 (lower axial stiffness, less radial) | STEP · STL · DXF |
| flexure-60-3arm-w2-t0.5 | planar spiral flexure Ø60, 3 arms 2.0 wide, 0.5 thick (DXF outline included), hub Ø13.2 bore Ø5, 3 × Ø3.2 rim holes on R26.4 | STEP · STL · DXF |
| flexure-60-3arm-w2-t2 | planar spiral flexure Ø60, 3 arms 2.0 wide, 2.0 thick, hub Ø13.2 bore Ø5, 3 × Ø3.2 rim holes on R26.4 | STEP · STL |
| flexure-60-2arm-w2-t0.5 | 2-arm variant Ø60 (lower axial stiffness, less radial) | STEP · STL · DXF |
| flexure-80-3arm-w2.5-t0.5 | planar spiral flexure Ø80, 3 arms 2.5 wide, 0.5 thick (DXF outline included), hub Ø17.6 bore Ø5, 3 × Ø3.2 rim holes on R35.2 | STEP · STL · DXF |
| flexure-80-3arm-w2.5-t2 | planar spiral flexure Ø80, 3 arms 2.5 wide, 2.0 thick, hub Ø17.6 bore Ø5, 3 × Ø3.2 rim holes on R35.2 | STEP · STL |
| flexure-80-2arm-w2.5-t0.5 | 2-arm variant Ø80 (lower axial stiffness, less radial) | STEP · STL · DXF |
| flexure-100-3arm-w3-t0.5 | planar spiral flexure Ø100, 3 arms 3.0 wide, 0.5 thick (DXF outline included), hub Ø22 bore Ø8, 3 × Ø3.2 rim holes on R44 | STEP · STL · DXF |
| flexure-100-3arm-w3-t2 | planar spiral flexure Ø100, 3 arms 3.0 wide, 2.0 thick, hub Ø22 bore Ø8, 3 × Ø3.2 rim holes on R44 | STEP · STL |
| flexure-100-2arm-w3-t0.5 | 2-arm variant Ø100 (lower axial stiffness, less radial) | STEP · STL · DXF |
| flexure-120-3arm-w3.5-t0.5 | planar spiral flexure Ø120, 3 arms 3.5 wide, 0.5 thick (DXF outline included), hub Ø26.4 bore Ø8, 3 × Ø3.2 rim holes on R52.8 | STEP · STL · DXF |
| flexure-120-3arm-w3.5-t2 | planar spiral flexure Ø120, 3 arms 3.5 wide, 2.0 thick, hub Ø26.4 bore Ø8, 3 × Ø3.2 rim holes on R52.8 | STEP · STL |
| flexure-120-2arm-w3.5-t0.5 | 2-arm variant Ø120 (lower axial stiffness, less radial) | STEP · STL · DXF |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=spiral-flexure-bearing

How it fits
Parts that fit it
Goes in or on
Connects to
Alternatives
Also needed
You might also need
Questions
What is a flexure bearing in a Stirling engine?
A stack of flat spiral springs that holds the piston on centre while it moves axially, so it runs in a clearance seal with no contact; NASA's free-piston convertors use them.
How many arms should a spiral flexure have?
Three for equal radial stiffness; two-arm leaves are softer axially but let the hub tilt. Alternate the spiral hand between leaves to cancel rotation.
What are the dimensions of the Ø80 flexure?
Hub Ø17.6, bore Ø5, rim 9.6 wide, three arms 2.5 wide, Ø3.2 rim holes on a Ø70.4 circle; 0.5 or 2.0 mm thick.
