Tri-clamp end cap with Ø60, Ø80 and Ø100 flexure-spring seats

What tri-clamp cap holds a flat spiral flexure spring? · Hardware · basis: ISO 2852 cap face; pedestal Ø = tube OD; plate Ø = flexure OD + 16 with a flexure-OD × 1 seat and 3 × Ø3.4 on the flexure rim-hole circle (0.88 × OD)

Also called: free piston stirling tri clamp, flexure bearing mount stirling, tri clamp flexure head, fpse head

Long Earth Society build part. The connecting parts of the tri-clamp free-piston engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • The head of the tri-clamp free-piston engine: it clamps on the spool's open ferrule and carries the piston's flexure stack (stack A).
  • Base: 6 mm ISO 2852 cap, pedestal the tube's OD (38.1 / 50.8 / 76.2) to 14 mm so the clamp clears, then a plate 4 mm thick, Ø76 / Ø96 / Ø116. Overall 18 mm.
  • On top: a seat Ø60 / Ø80 / Ø100 × 1 mm deep (the flexure OD) and three Ø3.4 holes on the flexure's rim-hole circle (Ø52.8 / Ø70.4 / Ø88). A centre window Ø19.2 / Ø23.6 / Ø28 (hub + 6) lets the rods through.

Tri-clamp end cap with Ø60, Ø80 and Ø100 flexure-spring seats size chart

spool (in)flange od (mm)plate od (mm)flexure seat (mm)rim hole circle (mm)window (mm)height (mm)
1.550.576Ø60 × 152.819.218
264.096Ø80 × 170.423.618
391.0116Ø100 × 188.028.018

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
flexure pocket in the head / ringflexure ODspiral flexure leaf rimslidefp-flexure-*
head faceISO 2852ferrule face + Type B gasketclampfp-flexure-head-*
piston pocketbore Ø × 1.6 inside the borefree piston skirt at full stroke (no contact)designedfp-flexure-head-*
rim holes (head, ring)Ø3.4M3 screw clearancedesignedfp-flexure-*
head / ring windowhub + 12 (Ø29.6 on Ø80)hub collars and their pinch-screw heads (no contact)designedfp-flexure-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

NASA NTRSFree-piston Stirling convertor flexure bearing development and life testingpdfUS Government work
Long Earth SocietyTri-clamp Stirling engine buildsweb, videoLES site
WikipediaFree-piston enginewebCC BY-SA 4.0 (text)

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fp-flexure-head-1.5in1.5 in flexure head: ISO 2852 cap face, Ø38.1 pedestal clearing the clamp, Ø76 plate with a Ø60 × 1 pocket (= flexure OD), a Ø25.2 window for the hub collars and 3 × M3 (Ø3.4) on the Ø60 flexure's rim holes; a piston pocket the bore's Ø × 1.6 inside the bore (the ISO 2852 face stays flat from the bore out); the piston's stack A bolts on itSTEP · STL
fp-flexure-head-2in2 in flexure head: ISO 2852 cap face, Ø50.8 pedestal clearing the clamp, Ø96 plate with a Ø80 × 1 pocket (= flexure OD), a Ø29.6 window for the hub collars and 3 × M3 (Ø3.4) on the Ø80 flexure's rim holes; a piston pocket the bore's Ø × 1.6 inside the bore (the ISO 2852 face stays flat from the bore out); the piston's stack A bolts on itSTEP · STL
fp-flexure-head-3in3 in flexure head: ISO 2852 cap face, Ø76.2 pedestal clearing the clamp, Ø116 plate with a Ø100 × 1 pocket (= flexure OD), a Ø34 window for the hub collars and 3 × M3 (Ø3.4) on the Ø100 flexure's rim holes; a piston pocket the bore's Ø × 1.6 inside the bore (the ISO 2852 face stays flat from the bore out); the piston's stack A bolts on itSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cap-flexure-seats

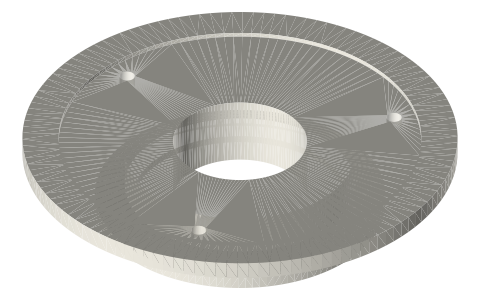

Tri-clamp end cap with Ø60, Ø80 and Ø100 flexure-spring seats, isometric render of a generated part
Render of fp-flexure-head-2in from the free STEP; not to scale.

You might also need

Questions

What flexure size goes on a 2 inch tri-clamp spool?

Ø80 leaves on the 2 in flexure head (Ø96 plate); Ø60 on 1.5 in, Ø100 on 3 in.

How are the flexures held on the head?

The leaf rim sits in the 1 mm deep seat and three M3 screws pass the Ø3.4 holes on the Ø70.4 circle (2 in) through the stack's spacers and clamp plate.
