Tri-clamp spool (two ferrules on a tube), 1.5 and 2 inch

What are the face-to-face lengths and volumes of 1.5 and 2 inch tri-clamp spools? · Hardware · basis: ISO 2852 faces on ASME BPE 16 ga tube; catalog lengths

Also called: tri clamp spool, tc spool, sanitary spool, tri clover spool, 2 inch spool, resonator section

Long Earth Society build part. The engine body sections: hot spool, regenerator spool, cold spool. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
7 in table

Notes

  • Face-to-face length is the spool's stated length. Internal volume sets a thermoacoustic engine's resonance; volumes assume 16 ga tube.
  • 2 in bore: 50.8 − 2×1.65 = 47.5 mm → 17.7 cm³ per cm. 1.5 in: 34.8 mm → 9.5 cm³ per cm.
  • Stack-up per joint: the faces of a clamped joint sit 1.7 mm apart (the gasket web; ISO 2852 quotes 2.1 compressed). A clamp adds about 10 mm of radial envelope beyond the flange.

Tri-clamp spool (two ferrules on a tube), 1.5 and 2 inch size chart

size (in)length (in)length (mm)bore (mm)volume cm3
1.5376.234.872
1.56152.434.8145
1.512304.834.8290
2376.247.5135
26152.447.5270
212304.847.5540
218457.247.5810

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
facesISO 2852clamp + Type B gasketclampall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

L.J. StarSanitary clamp gaskets: a good seal compresses the gasket about 0.3 mmwebmaker page verify
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify
ISO (via iTeh sample)ISO 2852:1974 clamp liners with gaskets (face and gasket profile, §6.1 and §8)PDFstandard excerpt; dimensions are facts
McMaster-CarrSanitary tube spools (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms: personal design use, no redistribution verify
Glacier TanksTri-clamp spools (dimensions on product pages)web, PDFvendor catalog verify

Free files

★ Free files 7 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tc-spool-1.5in-3in1.5 in spool, 76.2 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-1.5in-6in1.5 in spool, 152.4 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-1.5in-12in1.5 in spool, 304.8 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-2in-3in2 in spool, 76.2 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-2in-6in2 in spool, 152.4 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-2in-12in2 in spool, 304.8 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
tc-spool-2in-18in2 in spool, 457.2 mm face to face, 16 ga; ISO 2852 facesSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-spool

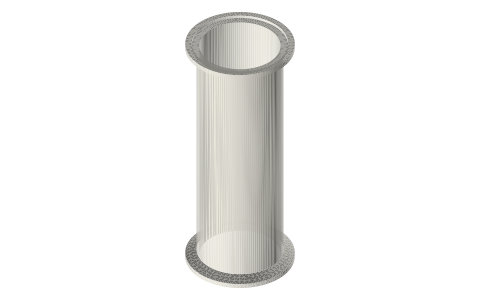

Tri-clamp spool (two ferrules on a tube), 1.5 and 2 inch, isometric render of a generated part
Render of tc-spool-2in-6in from the free STEP; not to scale.

How it fits

Parts that fit it

Mesh cage for 1.5 and 2 in tri-clamp spoolscage OD = spool bore Ø47.5 / Ø34.8 (socket)Slotted hollow pistons for tri-clamp spoolsØ44.5 in the Ø47.5 bore, 1.5 mm radial gapTri-clamp end cap with a Ø3 rod bore and 4 mm…ISO 2852 face on the spool ferruleTri-clamp end cap with a Ø15.9 socket for a 10 mL…ISO 2852 face on the spool or tee ferruleTri-clamp instrument cap with Ø6, Ø4 and Ø3 probe…ISO 2852 face on any ferrule of its sizeTri-clamp end cap with two 623 bearing towers and…ISO 2852 face on the cold-end ferruleHoneycomb and spiral stacks for tri-clamp spoolsstack OD = spool boreTri-clamp end cap with a Ø40 speaker socket, 1.5,…ISO 2852 face on the resonator's open ferruleTri-clamp end cap with 608 bearing towers for a…ISO 2852 face on the open ferruleTri-clamp end cap with Ø60, Ø80 and Ø100…ISO 2852 face on the open ferrule2 in tri-clamp cap with two gear-shaft wallsISO 2852 face on the ferrule with a gasketTri-clamp heat shield washerbore = flange OD, slides over the rim and down the tube

Connects to

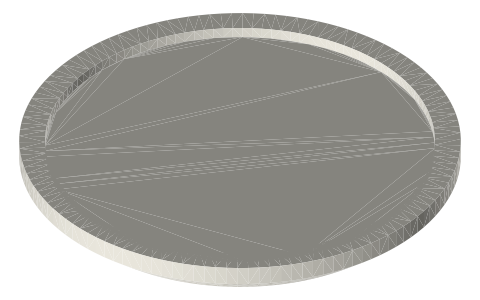

Tri-clamp clamp, two-boltone clamp per ferrule jointTri-clamp end cap, 6 mm flatflat cap and Type B gasketHollow loose-fit pistons for tri-clamp spoolsheads with rod guide, crank, power or instrument ports

Alternatives

Tri-clamp cupsone end closedTri-clamp sanitary ferrule, 1/2 to 4 inchweld your own length

Also needed

Spool hanger collarsclamp it to 2020 for a vertical engineHollow loose-fit pistons for tri-clamp spoolsdisplacers sized to its boreFull-bore pistons for tri-clamp spoolsfull-bore pistons and the clamp-on crank frame

Questions

What is the internal volume of a 2 inch tri clamp spool?

About 17.7 cm³ per cm of length with 16 ga tube (47.5 mm bore): a 6 in spool is roughly 270 cm³, a 12 in spool 540 cm³ before the ferrule faces.

What is the bore of a 1.5 inch tri clamp spool?

34.8 mm (38.1 mm OD tube, 1.65 mm wall), about 9.5 cm³ per cm.

How long is a tri clamp joint stack-up?

Two ferrule faces plus one compressed gasket web, about 2.1 mm per joint (ISO 2852 V). A clamp adds roughly 10 mm of radial envelope beyond the flange.
