Tri-clamp heat shield washer: 0.6 mm, ½ to 4 in tube

What goes between the flame and a tri-clamp clamp? · Hardware · basis: Washer: bore = flange OD (C3), OD = clamp OD + 16, 0.6 mm thick

Also called: tri clamp heat shield, clamp heat shield washer, stirling hot end shield

Long Earth Society build part. The clamps and hot gaskets for every tri-clamp engine here. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • A flat washer that slides over a ferrule rim (bore = flange OD) and rests on the hot-end clamp, so the flame's plume is turned away from the tube and the parts above the hot joint.
  • Bore = flange OD (25.0 / 50.5 / 64.0 / 77.5 / 91.0 / 119.0); OD = clamp OD + 16 (Ø50 / 75.5 / 89 / 102.5 / 116 / 144), 0.6 mm thick.
  • It goes on from the open end of the spool before the cold-end head and its clamp; it drops down the tube onto the hot clamp.

Tri-clamp heat shield washer: 0.6 mm, ½ to 4 in tube size chart

size (in)bore (mm)od (mm)thickness (mm)
¾25.050.00.6
1½50.575.50.6
264.089.00.6
2½77.5102.50.6
391.0116.00.6
4119.0144.00.6

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
heat-shield boreflange OD (C3)ferrule rim it passes over; rests on the clampslideheat-shield-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISOISO 2852:1993 Stainless steel clamp pipe couplings for the food industrystandardISO verify
Long Earth SocietyTri-clamp Stirling engine buildsweb, videoLES site

Free files

★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
heat-shield-0.75in0.75 in heat shield washer Ø50 OD (clamp OD + 16) × Ø25 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
heat-shield-1.5in1.5 in heat shield washer Ø75.5 OD (clamp OD + 16) × Ø50.5 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
heat-shield-2in2 in heat shield washer Ø89 OD (clamp OD + 16) × Ø64 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
heat-shield-2.5in2.5 in heat shield washer Ø102.5 OD (clamp OD + 16) × Ø77.5 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
heat-shield-3in3 in heat shield washer Ø116 OD (clamp OD + 16) × Ø91 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
heat-shield-4in4 in heat shield washer Ø144 OD (clamp OD + 16) × Ø119 bore (= flange OD) × 0.6: slides over a ferrule rim and rests on the hot-end clamp, shading the tube above the jointSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-heat-shield

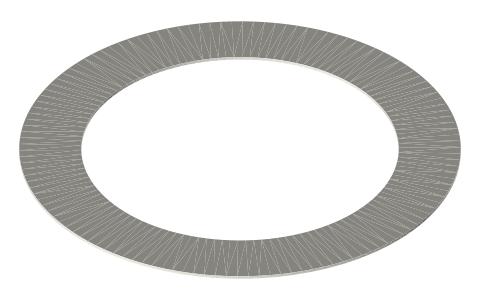

Tri-clamp heat shield washer: 0.6 mm, ½ to 4 in tube, isometric render of a generated part
Render of heat-shield-2in from the free STEP; not to scale.

Questions

What size heat shield for a 2 inch tri-clamp?

Ø89 × Ø64 bore × 0.6 mm: it passes over the 2 in ferrule rim and sits on the 73 mm clamp with 8 mm to spare all round.

How does the heat shield go on a finished spool?

Its bore is the flange OD, so it slides over the rim from the open end of the spool and down the tube onto the hot-end clamp.
