Full-bore pistons for tri-clamp spools: Ø34.8, Ø47.5 and Ø72.9

What piston fits the bore of a 1.5, 2 or 3 inch tri-clamp spool? · Hardware · basis: 16 ga ASME BPE bores 34.8 / 47.5 / 72.9 mm; piston drawn at the bore diameter; length 1.2 × bore

Also called: piston for 2 inch tri clamp spool, stirling power piston no o-ring, ring-less piston clearance, tri clamp piston stl, 47.5 mm piston

Long Earth Society build part. Full-bore pistons for the tri-clamp beta and alpha engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A ring-less full-bore piston: no ring and no O-ring, the seal is the fit in the spool bore. The piston is drawn at exactly the bore, Ø34.8 / 47.5 / 72.9; its running fit to the bore (0.02–0.05 mm on diameter for a clearance seal) is listed under Mating features.
  • Length 42 / 56 / 88 mm (1.2 × bore). Two 8 mm full-diameter lands at the ends carry the fit; between them the body is relieved 0.4 mm on radius. Crown 2.5 mm, skirt wall 1.6 mm, open skirt.
  • Wrist-pin bosses cross the skirt at 0.42 L (17.6 / 23.5 / 37.0 mm from the open end) with a Ø3 pin bore; the gap between the bosses is 16 mm (1.5 in) or 18 mm (2 and 3 in) for the con-rod small end.
  • The -rod pistons add a Ø11 × 6 boss under the crown with a Ø3 bore through crown and boss (8.5 long): the Ø3 displacer rod runs through it (beta, rhombic, free-piston layouts).
  • The 2 in piston is about 16.8 cm³ of material.

Full-bore pistons for tri-clamp spools: Ø34.8, Ø47.5 and Ø72.9 size chart

spool (in)bore (mm)piston od (mm)length (mm)wrist pin z (mm)files
1.534.834.84217.6piston-1.5in, piston-1.5in-rod
247.547.55623.5piston-2in, piston-2in-rod
372.972.98837.0piston-3in, piston-3in-rod

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
piston OD in the spool boreØ34.8 / 47.5 / 72.9 (= bore)tri-clamp-spool bore (ring-less clearance seal)runpiston-*
wrist-pin boreØ3Ø3 pin (stirling-shafts-and-rods pin-3x…)presspiston-*
wrist-pin boss gap16 / 18con-rod small enddesignedpiston-*
crown rod bore (-rod pistons)Ø3 × 8.5 (crown + boss)Ø3 displacer rod (slides through it)runpiston-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyTri-clamp Stirling engine buildsweb, videoLES site
James R. SenftAn Introduction to Stirling Engines (piston fit and leakage)bookMoriya Press verify
ASMEBPE tube dimensions (16 ga sanitary tube)standardASME verify

Free files

★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
piston-1.5in1.5 in full-bore piston Ø34.8 × 42 (the spool bore, exact), two 8 mm lands with 0.4 relief between, Ø3 wrist pin at 17.6 mm, open skirtSTEP · STL
piston-1.5in-rod1.5 in piston Ø34.8 as above with a Ø3 bore through the crown and a Ø11 × 6 boss under it: the Ø3 displacer rod runs through it (beta, rhombic, free-piston)STEP · STL
piston-2in2 in full-bore piston Ø47.5 × 56 (the spool bore, exact), two 8 mm lands with 0.4 relief between, Ø3 wrist pin at 23.5 mm, open skirtSTEP · STL
piston-2in-rod2 in piston Ø47.5 as above with a Ø3 bore through the crown and a Ø11 × 6 boss under it: the Ø3 displacer rod runs through it (beta, rhombic, free-piston)STEP · STL
piston-3in3 in full-bore piston Ø72.9 × 88 (the spool bore, exact), two 8 mm lands with 0.4 relief between, Ø3 wrist pin at 37.0 mm, open skirtSTEP · STL
piston-3in-rod3 in piston Ø72.9 as above with a Ø3 bore through the crown and a Ø11 × 6 boss under it: the Ø3 displacer rod runs through it (beta, rhombic, free-piston)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-full-bore-pistons

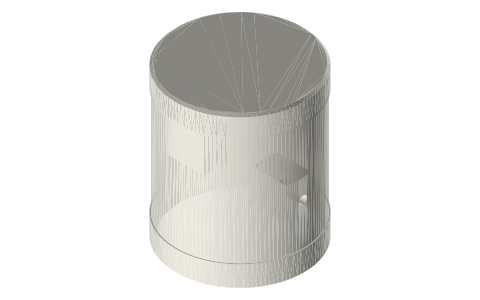

Full-bore pistons for tri-clamp spools: Ø34.8, Ø47.5 and Ø72.9, isometric render of a generated part
Render of piston-2in from the free STEP; not to scale.

You might also need

Questions

What clearance does a ring-less Stirling piston need?

A running fit of 0.02–0.05 mm on diameter. The piston is drawn at the bore diameter; that fit is its mating feature, set by whoever makes it.

Which piston fits a 2 inch spool?

The 2 in piston: Ø47.5 (the bore), 56 mm long, with the Ø3 wrist pin 23.5 mm from the open end.

Why two lands with a relief between?

Only the two 8 mm end lands touch the bore; the 0.4 mm relief between them halves the rubbing area while the full length keeps the piston square.

What is the -rod piston?

The same piston with a Ø3 bore through the crown and an Ø11 crown boss, so the Ø3 displacer rod runs through the piston.
