Spool hanger collars: clamp a 1.5, 2 or 3 in tri-clamp spool to 2020 extrusion
How do I hang a tri-clamp spool from 2020 extrusion? · Hardware · basis: 16 ga tube OD (38.1 / 50.8 / 76.2) from the tri-clamp spool entry; 2020 slot pitch for the mounting tab
Also called: tri clamp spool stand, mount stirling cylinder to 2020, tri clamp tube clamp bracket, stirling engine stand
Long Earth Society build part. How the vertical tri-clamp engines stand. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes

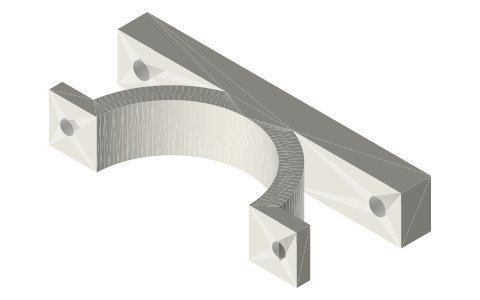

- A split collar bored to the tube OD with a 1 mm split each side, closed with two M4 screws, holds the spool anywhere along its cold half; the bar half takes two M5 screws and T-nuts into a horizontal 2020 crossbar between two uprights, so a vertical beta, free-piston or thermoacoustic engine hangs with its hot end over a tea light or burner and the base stays cool.
- Clamp on the cold side only; two collars on two uprights for a long spool. For a horizontal gamma use the base plate instead. Bore = tube OD exactly (the split closes it on the tube); M4 holes Ø4.5 and M5 holes Ø5.5 (ISO 273).
- LES: how the vertical engines stand.
Spool hanger collars: clamp a 1.5, 2 or 3 in tri-clamp spool to 2020… size chart
| size | tube od (mm) | collar id (mm) | width (mm) | closure | mount |
|---|---|---|---|---|---|
| 1.5 | 38.1 | 38.1 | 16 | 2 × M4 × 30 + nuts | 2 × M5 at 66.1 mm to a 2020 crossbar |
| 2 | 50.8 | 50.8 | 16 | 2 × M4 × 30 + nuts | 2 × M5 at 78.8 mm to a 2020 crossbar |
| 3 | 76.2 | 76.2 | 16 | 2 × M4 × 30 + nuts | 2 × M5 at 104.2 mm to a 2020 crossbar |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| collar bore | tube OD (38.1 / 50.8 / 76.2) | tri-clamp tube; the split closes on it | clamp | all |
| closing screw holes | Ø4.5 | M4 clearance (ISO 273) | designed | hanger-* |
| mounting holes | Ø5.5 | M5 clearance into a 2020 T-nut | designed | hanger-* |
| split | 1.0 total (0.5 per half) | the other half | clamp | hanger-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| hanger-1.5in-tab | 1.5 in spool hanger, half with the mounting bar: clamps the Ø38.1 tube; 2 × M5 at 66.1 mm centres into a horizontal 2020 crossbar's slot | STEP · STL |
| hanger-1.5in-plain | 1.5 in spool hanger, plain half: 2 × M4 × 30 close it on the tube | STEP · STL |
| hanger-2in-tab | 2 in spool hanger, half with the mounting bar: clamps the Ø50.8 tube; 2 × M5 at 78.8 mm centres into a horizontal 2020 crossbar's slot | STEP · STL |
| hanger-2in-plain | 2 in spool hanger, plain half: 2 × M4 × 30 close it on the tube | STEP · STL |
| hanger-3in-tab | 3 in spool hanger, half with the mounting bar: clamps the Ø76.2 tube; 2 × M5 at 104.2 mm centres into a horizontal 2020 crossbar's slot | STEP · STL |
| hanger-3in-plain | 3 in spool hanger, plain half: 2 × M4 × 30 close it on the tube | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=spool-hanger-collars

How it fits
Goes in or on
Connects to
Alternatives
Also needed
Questions
How do I mount a vertical tri-clamp Stirling engine?
Clamp a spool hanger collar around the cold half of the tube and bolt its bar to a horizontal 2020 crossbar with two M5 screws and T-nuts; the hot end hangs over the flame.
