Drop-in T-nuts for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion

What are drop-in T-nut dimensions for 2020 extrusion? · Hardware · basis: As long as the slot opening (so it passes it), and the slot space intersected with that space turned about the screw axis, so it turns 90° in the cavity without touching the walls; tap-drill thread hole

Also called: drop in t nut 2020, drop in t nut dimensions, roll in t nut, twist t nut stl, t nut insert from face

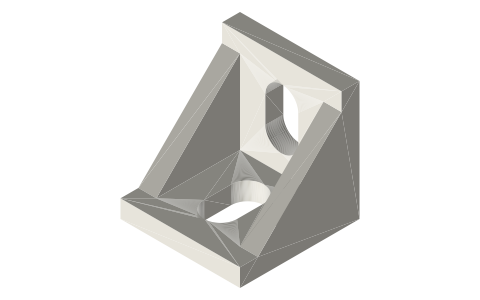

Long Earth Society build part. Brackets and T-nuts on the LES 2020 engine stands. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • The nut is the slot opening long, so it drops in through the face turned 90°; then it turns about the screw axis to lock under the lips. Its outline is the slot space intersected with the slot space revolved about the screw axis, so at every angle of the turn it stays inside the cavity and under the lips. Locked, its top bears on the lip undersides.
  • Families and the profiles they fit: 20-series (6 mm slot): 2020, 2040, 2060, 2080, 4040 (20-series); 30-series (8 mm slot): 3030, 3060, 6060; 40-series (10 mm slot): 4040, 4080, 8080; 45-series (10 mm slot): 4545, 4590, 9090; 1 in 10-series: 1010, 1020, 1030, 2020 in, 2040 in; 1.5 in 15-series: 1515, 1530, 1545, 3030 in, 3060 in, 1515-Lite, 1530-Lite, 3030-Lite.
  • Thread holes are the standard tap drills: M3 2.5, M4 3.3, M5 4.2, M6 5.0, M8 6.8, 1/4-20 5.1 (#7), 10-32 4.0 (#21), 5/16-18 6.53 (F).
  • Checked: tools/asm_extrusion_fit.py places every drop-in nut locked in every profile of its family and finds zero overlap.

Drop-in T-nuts for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion size chart

familylength along the slotwidth across (locked)height (floor to face)threads
20-series (6 mm slot)6 mm12 mm max6 mmM3, M4, M5
30-series (8 mm slot)8 mm16.5 mm max9 mmM5, M6, M8
40-series (10 mm slot)10 mm20 mm max12.5 mmM6, M8
45-series (10 mm slot)10 mm20 mm max13 mmM8
1 in 10-series0.256 in (6.50 mm)0.584 in (14.83 mm) max0.323 in (8.20 mm)1/4-20, 10-32
1.5 in 15-series0.320 in (8.13 mm)0.810 in (20.57 mm) max0.484 in (12.29 mm)5/16-18, 1/4-20

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
length along the slotthe slot openingpasses through the openingslidetnut-dropin-*
outlineslot space ∩ slot space turned about the screw axisturns 90° in the cavity; bears on the lip undersidesslidetnut-dropin-*
thread holetap drill (M3 2.5 … M8 6.8, 1/4-20 5.1, 10-32 4.0, 5/16-18 6.53)screw threaddesignedtnut-dropin-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaT-slot structural framingwebCC BY-SA 4.0 (text)
WikipediaT-slot nutwebCC BY-SA 4.0 (text)

Free files

★ Free files 13 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tnut-dropin-20-m3drop-in T-nut, 20-series (6 mm slot): 6.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M3 tap-drill hole Ø2.5STEP · STL
tnut-dropin-20-m4drop-in T-nut, 20-series (6 mm slot): 6.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M4 tap-drill hole Ø3.3STEP · STL
tnut-dropin-20-m5drop-in T-nut, 20-series (6 mm slot): 6.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M5 tap-drill hole Ø4.2STEP · STL
tnut-dropin-30-m5drop-in T-nut, 30-series (8 mm slot): 8.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M5 tap-drill hole Ø4.2STEP · STL
tnut-dropin-30-m6drop-in T-nut, 30-series (8 mm slot): 8.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M6 tap-drill hole Ø5STEP · STL
tnut-dropin-30-m8drop-in T-nut, 30-series (8 mm slot): 8.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M8 tap-drill hole Ø6.8STEP · STL
tnut-dropin-40-m6drop-in T-nut, 40-series (10 mm slot): 10.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M6 tap-drill hole Ø5STEP · STL
tnut-dropin-40-m8drop-in T-nut, 40-series (10 mm slot): 10.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M8 tap-drill hole Ø6.8STEP · STL
tnut-dropin-45-m8drop-in T-nut, 45-series (10 mm slot): 10.00 long (passes the opening), the slot space cut to turn 90° in the cavity, M8 tap-drill hole Ø6.8STEP · STL
tnut-dropin-10in-1-4-20drop-in T-nut, 1 in 10-series: 6.50 long (passes the opening), the slot space cut to turn 90° in the cavity, 1/4-20 tap-drill hole Ø5.1STEP · STL
tnut-dropin-10in-10-32drop-in T-nut, 1 in 10-series: 6.50 long (passes the opening), the slot space cut to turn 90° in the cavity, 10-32 tap-drill hole Ø4STEP · STL
tnut-dropin-15in-5-16-18drop-in T-nut, 1.5 in 15-series: 8.13 long (passes the opening), the slot space cut to turn 90° in the cavity, 5/16-18 tap-drill hole Ø6.53STEP · STL
tnut-dropin-15in-1-4-20drop-in T-nut, 1.5 in 15-series: 8.13 long (passes the opening), the slot space cut to turn 90° in the cavity, 1/4-20 tap-drill hole Ø5.1STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=drop-in-t-nuts

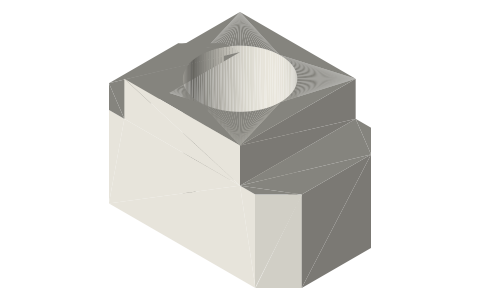

Drop-in T-nuts for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion, isometric render of a generated part
Render of tnut-dropin-20-m5 from the free STEP; not to scale.

How it fits

Goes in or on

2020 aluminum extrusion, 6 mm slotdrops through the opening, turns 90° in the cavity2040 aluminum extrusion, 6 mm slotdrops through the opening, turns 90° in the cavity2060 aluminum extrusion, 6 mm slotdrops through the opening, turns 90° in the cavity2080 aluminum extrusion, 6 mm slotdrops through the opening, turns 90° in the cavity4040 aluminum extrusion, 6 mm slotdrops through the opening, turns 90° in the cavity3030 aluminum extrusion, 8 mm slotdrops through the opening, turns 90° in the cavity3060 aluminum extrusion, 8 mm slotdrops through the opening, turns 90° in the cavity6060 aluminum extrusion, 8 mm slotdrops through the opening, turns 90° in the cavity4040 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity4080 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity8080 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity4545 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity4590 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity9090 aluminum extrusion, 10 mm slotdrops through the opening, turns 90° in the cavity1010 T-slot extrusion, 1 × 1 indrops through the opening, turns 90° in the cavity1020 T-slot extrusion, 1 × 2 indrops through the opening, turns 90° in the cavity1030 T-slot extrusion, 1 × 3 indrops through the opening, turns 90° in the cavity2020 T-slot extrusion, 2 × 2 indrops through the opening, turns 90° in the cavity2040 T-slot extrusion, 2 × 4 indrops through the opening, turns 90° in the cavity1515 T-slot extrusion, 1.5 × 1.5 indrops through the opening, turns 90° in the cavity1530 T-slot extrusion, 1.5 × 3 indrops through the opening, turns 90° in the cavity1545 T-slot extrusion, 1.5 × 4.5 indrops through the opening, turns 90° in the cavity3030 T-slot extrusion, 3 × 3 indrops through the opening, turns 90° in the cavity3060 T-slot extrusion, 3 × 6 indrops through the opening, turns 90° in the cavity1515-Lite T-slot extrusion, 1.5 × 1.5 indrops through the opening, turns 90° in the cavity1530-Lite T-slot extrusion, 1.5 × 3 indrops through the opening, turns 90° in the cavity3030-Lite T-slot extrusion, 3 × 3 indrops through the opening, turns 90° in the cavity

Connects to

Button head socket screws, M2–M8screw into the tap-drill hole

Alternatives

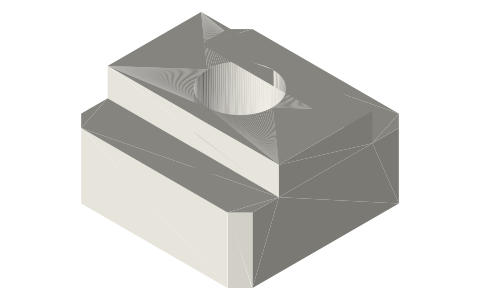

Slide-in T-nuts for 20, 30, 40, 45 mm and 1 in,…full-length nut slid in from the end

You might also need

Questions

What is a drop-in T-nut for 2020?

A nut 6 mm long (the opening) that drops in through the face and turns 90° in the 12 mm cavity to lock under the lips.

Why is it rounded?

Its ends are the cavity turned about the screw axis, so it can rotate in the slot without touching the walls.
