3030 aluminum extrusion, 8 mm slot (30-series)
What are the exact dimensions of 3030 aluminum extrusion? · Hardware · basis: Misumi 6 series, 8 mm slot, from Misumi's dimensioned drawing of this profile; every slot, lip, cavity, bore and outline number is the drawing's
Also called: 3030 extrusion step, 3030 extrusion dxf, 3030 extrusion dimensions, 3030 aluminum extrusion cad, 30x30 extrusion profile, 3030 t slot profile, 30x30 extrusion, 3030 extrusion, 80/20 style 3030, 3030 profile 8 mm slot, 3030 b-type extrusion
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- width
- 30.0 mm
- height
- 30.0 mm
Notes

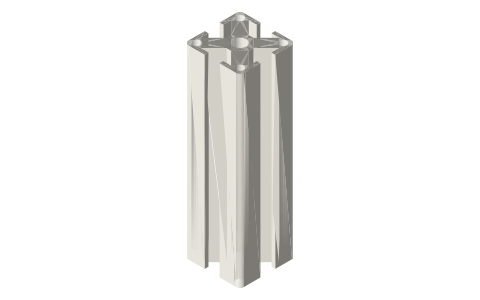

- 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm, 4 slots on a 30 mm pitch (Misumi 6 series, 8 mm slot). Source: Misumi's dimensioned drawing of this profile. Files: STEP and STL at 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 750, 1000, 1200, 1500 mm with square ends, and a DXF of the exact cross-section (mm), the master to extrude to any length. The section is centred on the origin and extruded along +Z from z = 0.
- Slot: opening 8 mm, lip 2 mm thick at the opening, cavity 16.5 mm wide under the lips, 9 mm from the face to the cavity floor. Centre bore Ø6.8 mm per cell (the M8 tap drill).
- Cavity side walls: the drawing gives the cavity width (16.5 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one.
- Outer corners R2 (stated). Also drawn: four Ø4.2 corner holes on 23.2 mm centres (stated).
- Wrapping it: to make a part that fits around the bar, subtract the 1000 mm file (or extrude the DXF) from your solid; the outline is the drawing's 30 × 30 mm with no allowance, so open the pocket by your process's socket fit (see Mating features).
- Attachments: the 30-series (8 mm slot) T-nuts, end caps, feet, brackets, gussets, plates and slot covers are cut from these same numbers; the fit check (tools/asm_extrusion_fit.py) placed each one on this profile with zero overlap.
3030 aluminum extrusion, 8 mm slot size chart
| feature | size | from |
|---|---|---|
| outline | 30 × 30 mm, R2 corners | drawing |
| slot pitch | 30 mm | drawing |
| slot opening | 8 mm | drawing |
| lip thickness at the opening | 2 mm | drawing |
| cavity width under the lips | 16.5 mm | drawing |
| face to cavity floor | 9 mm | drawing |
| cavity depth under the lip (at the cavity wall) | 7 mm | drawing |
| core between opposite floors | 12 mm | pitch − 2 × face-to-floor |
| diagonal web | not given (45° walls from the cavity corner) | assumed minimum cavity |
| centre bore | Ø6.8 mm × 1 | drawing |
| corner holes | 4 × Ø4.2 on 23.2 centres | drawing |
| cross-section area | 333 mm² | maker's page |
| mass | 0.9 kg/m | maker's page |
| Ix / Iy | 2.83 × 10⁴ / 2.83 × 10⁴ mm⁴ | maker's page |
| area of this model's section | 474.8 mm² | computed from the DXF |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| slot opening | 8 | T-nut tongue, slot-cover stem (30-series (8 mm slot)) | slide | all |
| slot cavity | 16.5 wide under the lips, face to floor 9, lip 2 | T-nut body (slide-in, drop-in) | slide | all |
| centre bore | Ø6.8 | M8 thread (tap drill 6.8); end-cap pin | designed | all |
| outline | 30 × 30, R2 | end-cap outline, foot socket, a pocket that wraps the bar | socket | all |
| corner holes | Ø4.2 | M5 tap drill (thread into the end) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Misumi | 30x30 Aluminum Extrusion - 6 Series, Base 30: product page with the cross-section drawing and section properties | web | Misumi site terms verify |
| Misumi | 3030 dimensioned cross-section drawing | image | Misumi site terms verify |
Free files
★ Free files 14 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| 3030-100 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 100 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-150 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 150 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-200 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 200 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-250 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 250 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-300 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 300 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-350 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 350 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-400 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 400 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-450 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 450 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-500 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 500 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-600 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 600 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-750 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 750 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-1000 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 1000 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-1200 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 1200 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 3030-1500 | 3030 aluminum extrusion, 8 mm slot (30-series): 30 × 30 mm section, 1500 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=3030-aluminum-extrusion

How it fits
Parts that fit it
Alternatives
Also needed
You might also need
Questions
What is the slot size of 3030 extrusion?
Opening 8 mm, lip 2 mm, cavity 16.5 mm wide under the lips and 9 mm deep from the face to the floor, per Misumi 6 series, 8 mm slot's drawing.
What T-nuts fit 3030 extrusion?
The 30-series (8 mm slot) nuts: slide-in (tnut-slide-30-m5, tnut-slide-30-m6, tnut-slide-30-m8) and drop-in versions, threaded M5, M6, M8 as tap-drill holes, cut to this slot's exact space.
Can I subtract this file to make a part that fits the extrusion exactly?
Yes: the outline is exactly 30 × 30 mm with R2 corners; extrude the DXF or subtract the 1000 mm STEP, then open the pocket by your fit.
How heavy is 3030 extrusion?
0.9 kg/m, 333 mm² section, as Misumi states. This model's section is larger because closed hollows / cavity details the drawing leaves undimensioned are drawn filled; use the stated weight, not the model's volume.
What in this model is not taken straight from the drawing?
Cavity side walls: the drawing gives the cavity width (16.5 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one.
