Extrusion end feet for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion
How do I put a foot on the end of 2020 extrusion? · Hardware · basis: Square foot 1.6 × the profile, socket = the 1 × 1 profile outline (exact, corner radius included) 3 deep, clearance hole for a screw into the centre bore
Also called: 2020 extrusion foot, t slot foot stl, extrusion end foot step, 4040 foot, 2020 profile foot
Long Earth Society build part. Brackets and T-nuts on the LES 2020 engine stands. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 6 in table
Notes

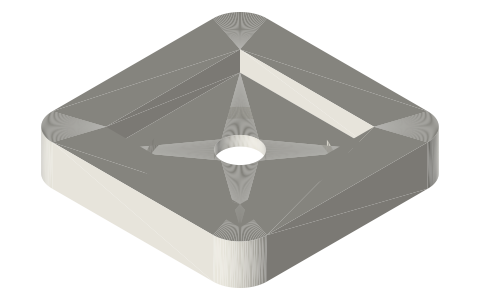

- Each foot is a 6 mm thick square 1.6 × the pitch with R4 corners, a 3 mm socket at the exact profile outline, a clearance hole for a screw into the centre bore, and a recess the pitch in diameter, 1.5 deep, underneath.
- The screw is the largest standard thread whose tap drill fits the bore: M5 on 20-series (Ø4.2), M8 on 30 (Ø6.8), M12 on 40 (Ø10.5), M14 on 45 (Ø12.5), 1/4-20 on 1 in (Ø0.205 in), 5/16-18 on 1.5 in (Ø0.262 in).
Extrusion end feet for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot… size chart
| family | foot (mm) | socket | screw hole |
|---|---|---|---|
| 20-series (6 mm slot) | 32 × 32 × 6 | 1 × 1 outline, R1 | Ø5.5 for M5 |
| 30-series (8 mm slot) | 48 × 48 × 6 | 1 × 1 outline, R2 | Ø9 for M8 |
| 40-series (10 mm slot) | 64 × 64 × 6 | 1 × 1 outline, R3 | Ø13.5 for M12 |
| 45-series (10 mm slot) | 72 × 72 × 6 | 1 × 1 outline, R3 | Ø15.5 for M14 |
| 1 in 10-series | 40.64 × 40.64 × 6 | 1 × 1 outline | Ø7.14 for 1/4-20 |
| 1.5 in 15-series | 60.96 × 60.96 × 6 | 1 × 1 outline | Ø8.73 for 5/16-18 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| socket | the 1 × 1 profile outline, corner radius included, 3 deep | profile end | socket | all |
| screw hole | Ø5.5 / 9 / 13.5 / 15.5 / 7.14 / 8.73 | M5 / M8 / M12 / M14 / 1/4-20 / 5/16-18 clearance, into the centre bore | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | T-slot structural framing | web | CC BY-SA 4.0 (text) |
| Wikipedia | T-slot nut | web | CC BY-SA 4.0 (text) |
Free files
★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| foot-20 | 20-series (6 mm slot) end foot: socket = the 1 × 1 profile outline, 3 deep; Ø5.5 clearance for an M5 into the centre bore | STEP · STL |
| foot-30 | 30-series (8 mm slot) end foot: socket = the 1 × 1 profile outline, 3 deep; Ø9 clearance for an M8 into the centre bore | STEP · STL |
| foot-40 | 40-series (10 mm slot) end foot: socket = the 1 × 1 profile outline, 3 deep; Ø13.5 clearance for an M12 into the centre bore | STEP · STL |
| foot-45 | 45-series (10 mm slot) end foot: socket = the 1 × 1 profile outline, 3 deep; Ø15.5 clearance for an M14 into the centre bore | STEP · STL |
| foot-10in | 1 in 10-series end foot: socket = the 1 × 1 profile outline, 3 deep; Ø7.14 clearance for an 1/4-20 into the centre bore | STEP · STL |
| foot-15in | 1.5 in 15-series end foot: socket = the 1 × 1 profile outline, 3 deep; Ø8.73 clearance for an 5/16-18 into the centre bore | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=t-slot-feet

How it fits
Goes in or on
Connects to
Alternatives
You might also need

Questions
What screw holds a foot on 2020 extrusion?
An M5 through the Ø5.5 hole into the Ø4.2 centre bore (the M5 tap drill).
How deep is the socket?
3 mm, at the exact profile outline.
