4545 aluminum extrusion, 10 mm slot (45-series)

What are the exact dimensions of 4545 aluminum extrusion? · Hardware · basis: Misumi 8-45 series, 10 mm slot, from Misumi's dimensioned drawing of this profile; every slot, lip, cavity, bore and outline number is the drawing's

Also called: 4545 extrusion step, 4545 extrusion dxf, 4545 extrusion dimensions, 4545 aluminum extrusion cad, 45x45 extrusion profile, 4545 t slot profile, 45x45 extrusion, 4545 extrusion, 80/20 style 4545, 4545 profile 10 mm slot, 4545 b-type extrusion

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

width
45.0 mm
height
45.0 mm

Notes

  • 4545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm, 4 slots on a 45 mm pitch (Misumi 8-45 series, 10 mm slot). Source: Misumi's dimensioned drawing of this profile. Files: STEP and STL at 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 750, 1000, 1200, 1500 mm with square ends, and a DXF of the exact cross-section (mm), the master to extrude to any length. The section is centred on the origin and extruded along +Z from z = 0.
  • Slot: opening 10 mm, lip 6 mm thick at the opening, cavity 20 mm wide under the lips, 13 mm from the face to the cavity floor. Centre bore Ø12.5 mm per cell (the largest thread whose tap drill fits inside: M14, 12 mm).
  • Cavity side walls: the drawing gives the cavity width (20 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one.
  • The four closed corner pockets (9.5 mm, 2 mm in from the faces, notched where the web meets them) are not fully dimensioned and are drawn filled.
  • Outer corners R3 (stated).
  • Wrapping it: to make a part that fits around the bar, subtract the 1000 mm file (or extrude the DXF) from your solid; the outline is the drawing's 45 × 45 mm with no allowance, so open the pocket by your process's socket fit (see Mating features).
  • Attachments: the 45-series (10 mm slot) T-nuts, end caps, feet, brackets, gussets, plates and slot covers are cut from these same numbers; the fit check (tools/asm_extrusion_fit.py) placed each one on this profile with zero overlap.

4545 aluminum extrusion, 10 mm slot size chart

featuresizefrom
outline45 × 45 mm, R3 cornersdrawing
slot pitch45 mmdrawing
slot opening10 mmdrawing
lip thickness at the opening6 mmdrawing
cavity width under the lips20 mmdrawing
face to cavity floor13 mmdrawing
cavity depth under the lip (at the cavity wall)7 mmdrawing
core between opposite floors19 mmpitch − 2 × face-to-floor
diagonal webnot given (45° walls from the cavity corner)assumed minimum cavity
centre boreØ12.5 mm × 1drawing
cross-section area777 mm²maker's page
mass2.1 kg/mmaker's page
Ix / Iy15.13 × 10⁴ / 15.13 × 10⁴ mm⁴maker's page
area of this model's section1290.6 mm²computed from the DXF

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
slot opening10T-nut tongue, slot-cover stem (45-series (10 mm slot))slideall
slot cavity20 wide under the lips, face to floor 13, lip 6T-nut body (slide-in, drop-in)slideall
centre boreØ12.5M14 thread (tap drill 12); end-cap pindesignedall
outline45 × 45, R3end-cap outline, foot socket, a pocket that wraps the barsocketall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Misumi45x45 Aluminum Extrusion - 8-45 Series, Base 45: product page with the cross-section drawing and section propertieswebMisumi site terms verify
Misumi4545 dimensioned cross-section drawingimageMisumi site terms verify

Free files

★ Free files 14 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
4545-1004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 100 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-1504545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 150 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-2004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 200 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-2504545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 250 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-3004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 300 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-3504545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 350 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-4004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 400 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-4504545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 450 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-5004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 500 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-6004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 600 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-7504545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 750 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-10004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 1000 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-12004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 1200 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
4545-15004545 aluminum extrusion, 10 mm slot (45-series): 45 × 45 mm section, 1500 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=4545-aluminum-extrusion

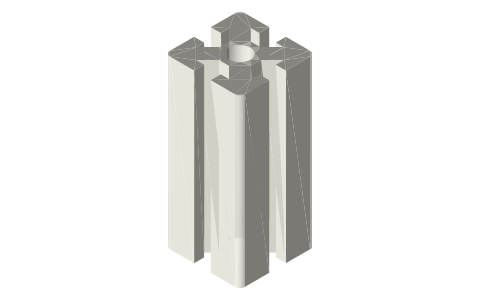

4545 aluminum extrusion, 10 mm slot (45-series), isometric render of a generated part
Render of 4545-100 from the free STEP; not to scale.

You might also need

Questions

What is the slot size of 4545 extrusion?

Opening 10 mm, lip 6 mm, cavity 20 mm wide under the lips and 13 mm deep from the face to the floor, per Misumi 8-45 series, 10 mm slot's drawing.

What T-nuts fit 4545 extrusion?

The 45-series (10 mm slot) nuts: slide-in (tnut-slide-45-m8) and drop-in versions, threaded M8 as tap-drill holes, cut to this slot's exact space.

Can I subtract this file to make a part that fits the extrusion exactly?

Yes: the outline is exactly 45 × 45 mm with R3 corners; extrude the DXF or subtract the 1000 mm STEP, then open the pocket by your fit.

How heavy is 4545 extrusion?

2.1 kg/m, 777 mm² section, as Misumi states. This model's section is larger because closed hollows / cavity details the drawing leaves undimensioned are drawn filled; use the stated weight, not the model's volume.

What in this model is not taken straight from the drawing?

Cavity side walls: the drawing gives the cavity width (20 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one. The four closed corner pockets (9.5 mm, 2 mm in from the faces, notched where the web meets them) are not fully dimensioned and are drawn filled.
