Joining plates, 2 × 3 holes, for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion

What hole spacing for a 2020 joining plate? · Hardware · basis: Flat plate, 2 × 3 holes on the profile pitch (one per slot centreline), clearance holes, 5 mm thick

Also called: 2020 joining plate, t slot plate stl, extrusion mounting plate, 2020 tee plate, 3030 joining plate

Long Earth Society build part. Brackets and T-nuts on the LES 2020 engine stands. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • Each plate is 5 mm thick with R3 corners and six holes in a 2 × 3 grid on the profile pitch, one hole over each slot centreline.
  • Use it to join profiles in a T or L, or as a mounting grid.

Joining plates, 2 × 3 holes, for 20, 30, 40, 45 mm and 1 in, 1.5 in… size chart

familyplate (mm)pitch (mm)holes
20-series (6 mm slot)40 × 60 × 520Ø5.5 (M5)
30-series (8 mm slot)60 × 90 × 530Ø6.6 (M6)
40-series (10 mm slot)80 × 120 × 540Ø9 (M8)
45-series (10 mm slot)90 × 135 × 545Ø9 (M8)
1 in 10-series50.8 × 76.2 × 525.4Ø7.14 (1/4-20)
1.5 in 15-series76.2 × 114.3 × 538.1Ø8.73 (5/16-18)

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
plate faceflatprofile facesdesignedall
holes on the pitchØ5.5 / 6.6 / 9 / 9 / 7.14 / 8.73M5 / M6 / M8 / M8 / 1/4-20 / 5/16-18 clearancedesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaT-slot structural framingwebCC BY-SA 4.0 (text)
WikipediaT-slot nutwebCC BY-SA 4.0 (text)

Free files

★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
plate-20-2x320-series (6 mm slot) 2 × 3 hole plate on the 20 mm pitch, 5 thick, Ø5.5 holes (M5 clearance)STEP · STL
plate-30-2x330-series (8 mm slot) 2 × 3 hole plate on the 30 mm pitch, 5 thick, Ø6.6 holes (M6 clearance)STEP · STL
plate-40-2x340-series (10 mm slot) 2 × 3 hole plate on the 40 mm pitch, 5 thick, Ø9 holes (M8 clearance)STEP · STL
plate-45-2x345-series (10 mm slot) 2 × 3 hole plate on the 45 mm pitch, 5 thick, Ø9 holes (M8 clearance)STEP · STL
plate-10in-2x31 in 10-series 2 × 3 hole plate on the 25.4 mm pitch, 5 thick, Ø7.14 holes (1/4-20 clearance)STEP · STL
plate-15in-2x31.5 in 15-series 2 × 3 hole plate on the 38.1 mm pitch, 5 thick, Ø8.73 holes (5/16-18 clearance)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=t-slot-joining-plates

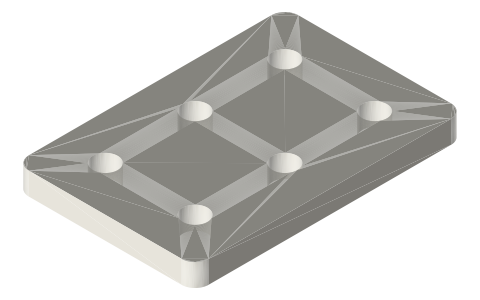

Joining plates, 2 × 3 holes, for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion, isometric render of a generated part
Render of plate-20-2x3 from the free STEP; not to scale.

How it fits

Goes in or on

2020 aluminum extrusion, 6 mm slotholes over the slot centrelines on the profile pitch2040 aluminum extrusion, 6 mm slotholes over the slot centrelines on the profile pitch2060 aluminum extrusion, 6 mm slotholes over the slot centrelines on the profile pitch2080 aluminum extrusion, 6 mm slotholes over the slot centrelines on the profile pitch4040 aluminum extrusion, 6 mm slotholes over the slot centrelines on the profile pitch3030 aluminum extrusion, 8 mm slotholes over the slot centrelines on the profile pitch3060 aluminum extrusion, 8 mm slotholes over the slot centrelines on the profile pitch6060 aluminum extrusion, 8 mm slotholes over the slot centrelines on the profile pitch4040 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch4080 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch8080 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch4545 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch4590 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch9090 aluminum extrusion, 10 mm slotholes over the slot centrelines on the profile pitch1010 T-slot extrusion, 1 × 1 inholes over the slot centrelines on the profile pitch1020 T-slot extrusion, 1 × 2 inholes over the slot centrelines on the profile pitch1030 T-slot extrusion, 1 × 3 inholes over the slot centrelines on the profile pitch2020 T-slot extrusion, 2 × 2 inholes over the slot centrelines on the profile pitch2040 T-slot extrusion, 2 × 4 inholes over the slot centrelines on the profile pitch1515 T-slot extrusion, 1.5 × 1.5 inholes over the slot centrelines on the profile pitch1530 T-slot extrusion, 1.5 × 3 inholes over the slot centrelines on the profile pitch1545 T-slot extrusion, 1.5 × 4.5 inholes over the slot centrelines on the profile pitch3030 T-slot extrusion, 3 × 3 inholes over the slot centrelines on the profile pitch3060 T-slot extrusion, 3 × 6 inholes over the slot centrelines on the profile pitch1515-Lite T-slot extrusion, 1.5 × 1.5 inholes over the slot centrelines on the profile pitch1530-Lite T-slot extrusion, 1.5 × 3 inholes over the slot centrelines on the profile pitch3030-Lite T-slot extrusion, 3 × 3 inholes over the slot centrelines on the profile pitch

Alternatives

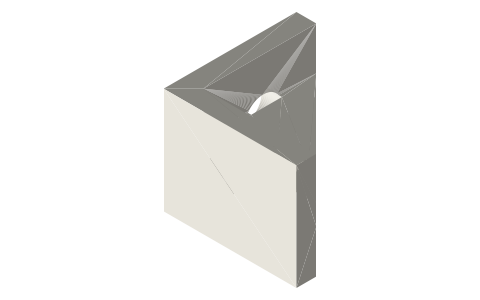

Inside corner gussets for 20, 30, 40, 45 mm and 1…corner joint

Also needed

Slide-in T-nuts for 20, 30, 40, 45 mm and 1 in,…screw through each hole into a T-nut

You might also need

Questions

What hole spacing on a 2020 plate?

20 mm, the profile pitch, with Ø5.5 holes for M5.
