3060 aluminum extrusion, 8 mm slot (30-series)

What are the exact dimensions of 3060 aluminum extrusion? · Hardware · basis: Misumi 6 series, 8 mm slot, from Misumi's dimensioned drawing of this profile; every slot, lip, cavity, bore and outline number is the drawing's

Also called: 3060 extrusion step, 3060 extrusion dxf, 3060 extrusion dimensions, 3060 aluminum extrusion cad, 30x60 extrusion profile, 3060 t slot profile, 60x30 extrusion, 6030 extrusion, 80/20 style 3060, double wide t-slot extrusion, 2 slot wide extrusion, 3060 profile 8 mm slot, 3060 b-type extrusion

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

width
60.0 mm
height
30.0 mm

Notes

  • 3060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm, 6 slots on a 30 mm pitch (Misumi 6 series, 8 mm slot). Source: Misumi's dimensioned drawing of this profile. Files: STEP and STL at 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 750, 1000, 1200, 1500 mm with square ends, and a DXF of the exact cross-section (mm), the master to extrude to any length. The section is centred on the origin and extruded along +Z from z = 0.
  • Slot: opening 8 mm, lip 2 mm thick at the opening, cavity 16.5 mm wide under the lips, 9 mm from the face to the cavity floor. Centre bore Ø6.8 mm per cell (the M8 tap drill).
  • Cavity side walls: the drawing gives the cavity width (16.5 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one.
  • The closed hollows between cells are not fully dimensioned on the drawing, so they are drawn filled: the outline, slots and bores are exact, the bar is heavier than the real one. The corner holes shown on the drawing are not fully dimensioned (no diameter or across-width spacing), so they are not drawn.
  • Outer corners R2 (stated).
  • Wrapping it: to make a part that fits around the bar, subtract the 1000 mm file (or extrude the DXF) from your solid; the outline is the drawing's 30 × 60 mm with no allowance, so open the pocket by your process's socket fit (see Mating features).
  • Attachments: the 30-series (8 mm slot) T-nuts, end caps, feet, brackets, gussets, plates and slot covers are cut from these same numbers; the fit check (tools/asm_extrusion_fit.py) placed each one on this profile with zero overlap.

3060 aluminum extrusion, 8 mm slot size chart

featuresizefrom
outline30 × 60 mm, R2 cornersdrawing
slot pitch30 mmdrawing
slot opening8 mmdrawing
lip thickness at the opening2 mmdrawing
cavity width under the lips16.5 mmdrawing
face to cavity floor9 mmdrawing
cavity depth under the lip (at the cavity wall)7 mmdrawing
core between opposite floors12 mmpitch − 2 × face-to-floor
diagonal webnot given (45° walls from the cavity corner)assumed minimum cavity
centre boreØ6.8 mm × 2drawing
cross-section area592 mm²maker's page
mass1.6 kg/mmaker's page
Ix / Iy5.33 × 10⁴ / 20.56 × 10⁴ mm⁴maker's page
area of this model's section1228.9 mm²computed from the DXF

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
slot opening8T-nut tongue, slot-cover stem (30-series (8 mm slot))slideall
slot cavity16.5 wide under the lips, face to floor 9, lip 2T-nut body (slide-in, drop-in)slideall
centre boreØ6.8M8 thread (tap drill 6.8); end-cap pindesignedall
outline30 × 60, R2end-cap outline, foot socket, a pocket that wraps the barsocketall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Misumi30x60 Aluminum Extrusion - 6 Series, Base 30: product page with the cross-section drawing and section propertieswebMisumi site terms verify
Misumi3060 dimensioned cross-section drawingimageMisumi site terms verify

Free files

★ Free files 14 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
3060-1003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 100 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-1503060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 150 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-2003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 200 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-2503060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 250 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-3003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 300 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-3503060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 350 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-4003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 400 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-4503060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 450 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-5003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 500 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-6003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 600 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-7503060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 750 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-10003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 1000 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-12003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 1200 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
3060-15003060 aluminum extrusion, 8 mm slot (30-series): 30 × 60 mm section, 1500 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=3060-aluminum-extrusion

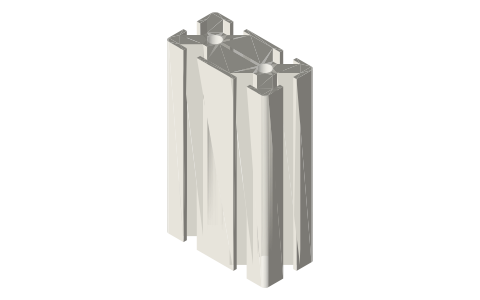

3060 aluminum extrusion, 8 mm slot (30-series), isometric render of a generated part
Render of 3060-100 from the free STEP; not to scale.

Questions

What is the slot size of 3060 extrusion?

Opening 8 mm, lip 2 mm, cavity 16.5 mm wide under the lips and 9 mm deep from the face to the floor, per Misumi 6 series, 8 mm slot's drawing.

What T-nuts fit 3060 extrusion?

The 30-series (8 mm slot) nuts: slide-in (tnut-slide-30-m5, tnut-slide-30-m6, tnut-slide-30-m8) and drop-in versions, threaded M5, M6, M8 as tap-drill holes, cut to this slot's exact space.

Can I subtract this file to make a part that fits the extrusion exactly?

Yes: the outline is exactly 30 × 60 mm with R2 corners; extrude the DXF or subtract the 1000 mm STEP, then open the pocket by your fit.

How heavy is 3060 extrusion?

1.6 kg/m, 592 mm² section, as Misumi states. This model's section is larger because closed hollows / cavity details the drawing leaves undimensioned are drawn filled; use the stated weight, not the model's volume.

What in this model is not taken straight from the drawing?

Cavity side walls: the drawing gives the cavity width (16.5 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one. The closed hollows between cells are not fully dimensioned on the drawing, so they are drawn filled: the outline, slots and bores are exact, the bar is heavier than the real one. The corner holes shown on the drawing are not fully dimensioned (no diameter or across-width spacing), so they are not drawn.
