Snap-in slot covers for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion (100 mm)

How do I cover the slot of 2020 extrusion? · Hardware · basis: Stem = slot opening wide and as deep as the lip (exact), snap barb 0.6 mm each side behind the lips (designed), cap 1.2 mm wider than the opening each side

Also called: t slot cover step, 2020 slot cover stl, extrusion slot filler, 3030 slot cover, 2020 slot cover strip

Long Earth Society build part. Brackets and T-nuts on the LES 2020 engine stands. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • Each cover is 100 mm long: a 1.2 mm cap on the face, a stem the slot opening wide down through the lip, and a 1 mm barb 1.2 mm wider than the opening (0.6 each side, designed) that springs behind the lips. On the inch series the stem runs to where the 2° drop-lock lip ends over the barb.
  • Covers hide wiring and keep debris out; the section is constant, so it can be extended to any length.

Snap-in slot covers for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot… size chart

familycap (mm)stem (mm)barb (mm)
20-series (6 mm slot)8.40 × 1.26.00 × 2.007.20 × 1
30-series (8 mm slot)10.40 × 1.28.00 × 2.009.20 × 1
40-series (10 mm slot)12.40 × 1.210.00 × 5.5011.20 × 1
45-series (10 mm slot)12.40 × 1.210.00 × 6.0011.20 × 1
1 in 10-series8.90 × 1.26.50 × 2.237.70 × 1
1.5 in 15-series10.53 × 1.28.13 × 4.089.33 × 1

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
stemslot opening wide, lip deepslot openingslideall
barbopening + 1.2snaps behind the lipsdesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaT-slot structural framingwebCC BY-SA 4.0 (text)
WikipediaT-slot nutwebCC BY-SA 4.0 (text)

Free files

★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
slot-cover-20-10020-series (6 mm slot) snap-in slot cover, 100 mm: stem 6.00 wide (the opening) × 2.00 deep, barb 7.20, cap 8.40 × 1.2STEP · STL
slot-cover-30-10030-series (8 mm slot) snap-in slot cover, 100 mm: stem 8.00 wide (the opening) × 2.00 deep, barb 9.20, cap 10.40 × 1.2STEP · STL
slot-cover-40-10040-series (10 mm slot) snap-in slot cover, 100 mm: stem 10.00 wide (the opening) × 5.50 deep, barb 11.20, cap 12.40 × 1.2STEP · STL
slot-cover-45-10045-series (10 mm slot) snap-in slot cover, 100 mm: stem 10.00 wide (the opening) × 6.00 deep, barb 11.20, cap 12.40 × 1.2STEP · STL
slot-cover-10in-1001 in 10-series snap-in slot cover, 100 mm: stem 6.50 wide (the opening) × 2.23 deep, barb 7.70, cap 8.90 × 1.2STEP · STL
slot-cover-15in-1001.5 in 15-series snap-in slot cover, 100 mm: stem 8.13 wide (the opening) × 4.08 deep, barb 9.33, cap 10.53 × 1.2STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=t-slot-covers

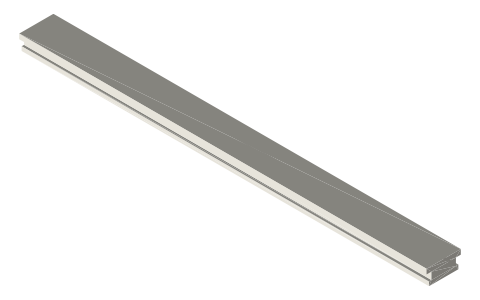

Snap-in slot covers for 20, 30, 40, 45 mm and 1 in, 1.5 in T-slot extrusion (100 mm), isometric render of a generated part
Render of slot-cover-20-100 from the free STEP; not to scale.

How it fits

Goes in or on

2020 aluminum extrusion, 6 mm slotstem in the slot opening, barb behind the lips2040 aluminum extrusion, 6 mm slotstem in the slot opening, barb behind the lips2060 aluminum extrusion, 6 mm slotstem in the slot opening, barb behind the lips2080 aluminum extrusion, 6 mm slotstem in the slot opening, barb behind the lips4040 aluminum extrusion, 6 mm slotstem in the slot opening, barb behind the lips3030 aluminum extrusion, 8 mm slotstem in the slot opening, barb behind the lips3060 aluminum extrusion, 8 mm slotstem in the slot opening, barb behind the lips6060 aluminum extrusion, 8 mm slotstem in the slot opening, barb behind the lips4040 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips4080 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips8080 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips4545 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips4590 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips9090 aluminum extrusion, 10 mm slotstem in the slot opening, barb behind the lips1010 T-slot extrusion, 1 × 1 instem in the slot opening, barb behind the lips1020 T-slot extrusion, 1 × 2 instem in the slot opening, barb behind the lips1030 T-slot extrusion, 1 × 3 instem in the slot opening, barb behind the lips2020 T-slot extrusion, 2 × 2 instem in the slot opening, barb behind the lips2040 T-slot extrusion, 2 × 4 instem in the slot opening, barb behind the lips1515 T-slot extrusion, 1.5 × 1.5 instem in the slot opening, barb behind the lips1530 T-slot extrusion, 1.5 × 3 instem in the slot opening, barb behind the lips1545 T-slot extrusion, 1.5 × 4.5 instem in the slot opening, barb behind the lips3030 T-slot extrusion, 3 × 3 instem in the slot opening, barb behind the lips3060 T-slot extrusion, 3 × 6 instem in the slot opening, barb behind the lips1515-Lite T-slot extrusion, 1.5 × 1.5 instem in the slot opening, barb behind the lips1530-Lite T-slot extrusion, 1.5 × 3 instem in the slot opening, barb behind the lips3030-Lite T-slot extrusion, 3 × 3 instem in the slot opening, barb behind the lips

Also needed

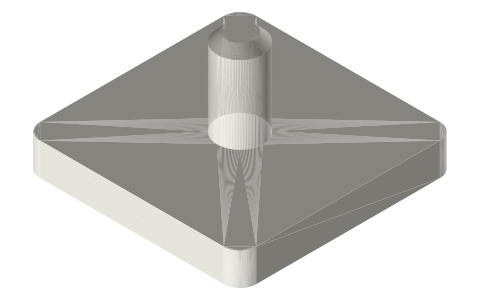

End caps for every T-slot profile herecloses the profile ends

You might also need

Questions

How wide is a 2020 slot cover?

The stem is 6.0 mm (the opening), the cap 8.4 mm and the barb 7.2 mm.
