Base plate for 1.5, 2 and 3 in tri-clamp spools

What base plate holds a tri-clamp spool upright? · Hardware · basis: Spool passage = ISO 2852 flange Ø + 2 (50.5 / 64 / 91); width flange + 90, depth max(70, flange + 30); M5 clearance Ø5.5 (ISO 273 medium)

Also called: stirling engine base plate, tri clamp engine mount, tri clamp stirling base

Long Earth Society build part. Frame for the LES 2 in gamma on 2020. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A 6 mm plate with 6 mm corner radii, sized to the tri-clamp flange: 140.5 × 80.5 (1.5 in), 154 × 94 (2 in), 181 × 121 (3 in).
  • On centre a passage Ø52.5 / Ø66 / Ø93 (flange Ø + 2) that the spool or its cap goes through without contact.
  • Either side, a 16 × 3.4 slot at flange radius + 18 for the crank stands' M3 screws; at the ends, 4 × Ø5.5 holes (50 mm apart across, 12 in from each end) for M5 into 2020 extrusion.

Base plate for 1.5, 2 and 3 in tri-clamp spools size chart

fileplatespool passagestand slots atM5 holes
base-plate-1.5in140.5 × 80.5 × 652.5±43.254 × Ø5.5, 116.5 × 50
base-plate-2in154 × 94 × 666±504 × Ø5.5, 130 × 50
base-plate-3in181 × 121 × 693±63.54 × Ø5.5, 157 × 50

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
base-plate spool passageflange Ø + 2ferrule flange passes throughdesignedbase-plate-*
base-plate M5 holesØ5.5M5 screw clearance (ISO 273 medium)designedbase-plate-*
crank-stand slots3.4 × 16, 2 per stand at y ±21 (42 apart), x ±(flange/2 + 16)crank-stand-625 foot slots, M3 screwsdesignedbase-plate-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaBeam enginewebCC BY-SA 4.0 (text)
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
base-plate-1.5inbase plate for a 1.5 in tri-clamp engine, 140.5 × 80.5 × 6: Ø52.5 spool passage (flange Ø + 2), two crank-stand-625 seats at x ±41.25, each 2 × M3 slots 3.4 × 16 (along y) on y ±21 (the stand's 42 mm foot pitch), 4 × M5 clearance (Ø5.5) at x ±58.25, y ±25 to 2020 extrusionSTEP · STL
base-plate-2inbase plate for a 2 in tri-clamp engine, 154 × 94 × 6: Ø66 spool passage (flange Ø + 2), two crank-stand-625 seats at x ±48, each 2 × M3 slots 3.4 × 16 (along y) on y ±21 (the stand's 42 mm foot pitch), 4 × M5 clearance (Ø5.5) at x ±65, y ±25 to 2020 extrusionSTEP · STL
base-plate-3inbase plate for a 3 in tri-clamp engine, 181 × 121 × 6: Ø93 spool passage (flange Ø + 2), two crank-stand-625 seats at x ±61.5, each 2 × M3 slots 3.4 × 16 (along y) on y ±21 (the stand's 42 mm foot pitch), 4 × M5 clearance (Ø5.5) at x ±78.5, y ±25 to 2020 extrusionSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-spool-base-plate

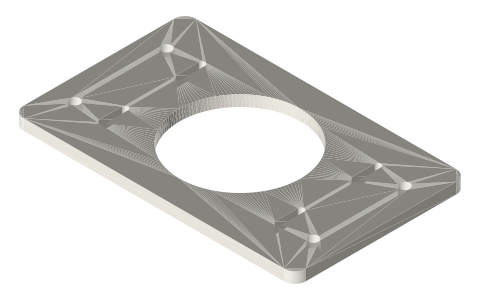

Base plate for 1.5, 2 and 3 in tri-clamp spools, isometric render of a generated part
Render of base-plate-2in from the free STEP; not to scale.

You might also need

Questions

How do I mount a tri-clamp Stirling engine?

On the base plate: spool through the Ø66 passage (2 in), crank stands in the slots, 4 × M5 down into 2020 or a board.

What size is the 2 in base plate?

154 × 94 × 6 with a Ø66 passage.
