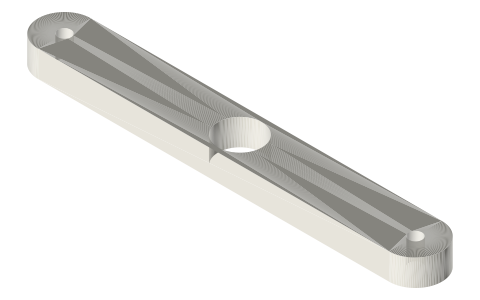

Rocker beam 60 / 80 / 100 mm on a 623 pivot
What are the dimensions of a small rocker beam? · Hardware · basis: Centre pivot on a 623 bearing (Ø10 pocket, fit: press); Ø3 end holes (fit: run) at ±L/2
Also called: walking beam stirling, rocker beam stirling displacer, beam engine stirling
Long Earth Society build part. Frame for the LES 2 in gamma on 2020. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- The walking beam of a beam-driven gamma: one end to the crank's con-rod, the other to the displacer rod, pivoting in the middle.
- A 12 wide × 6 thick bar L + 12 long (72 / 92 / 112) with Ø3 holes at ±L/2 (fit: run) and a Ø10 pocket on centre for a 623 bearing (fit: press).
- With equal arms the ratio is 1:1: the displacer stroke equals the crank stroke.
Rocker beam 60 / 80 / 100 mm on a 623 pivot size chart
| file | pin centres | length | section | pivot | end holes |
|---|---|---|---|---|---|
| rocker-beam-60 | 60 | 72 | 12 × 6 | Ø10 (623) | Ø3 |
| rocker-beam-80 | 80 | 92 | 12 × 6 | Ø10 (623) | Ø3 |
| rocker-beam-100 | 100 | 112 | 12 × 6 | Ø10 (623) | Ø3 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| rocker-beam pivot pocket | Ø10 | 623 bearing | press | rocker-beam-* |
| rocker-beam ends | Ø3 | Ø3 pins (turn on them) | run | rocker-beam-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Beam engine | web | CC BY-SA 4.0 (text) |
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| rocker-beam-60 | rocker beam 60 mm, centre pivot on a 623 (Ø10 pocket), Ø3 ends (beam-driven displacer) | STEP · STL |
| rocker-beam-80 | rocker beam 80 mm, centre pivot on a 623 (Ø10 pocket), Ø3 ends (beam-driven displacer) | STEP · STL |
| rocker-beam-100 | rocker beam 100 mm, centre pivot on a 623 (Ø10 pocket), Ø3 ends (beam-driven displacer) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=rocker-beam

How it fits
Goes in or on
Connects to
Also needed
You might also need
Questions
What is a beam-driven Stirling engine?
The crank drives a rocker beam whose far end moves the displacer, so the crank can sit beside the cylinder.
What bearing goes in the rocker beam?

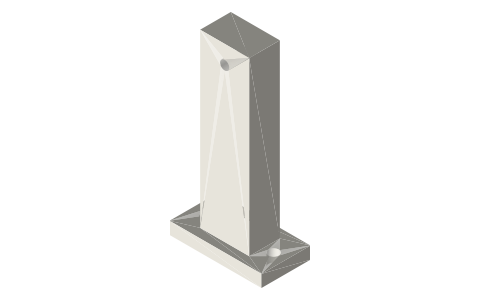

A 623 (3 × 10 × 4) in the centre pocket, on the pivot post's Ø3 pin.
