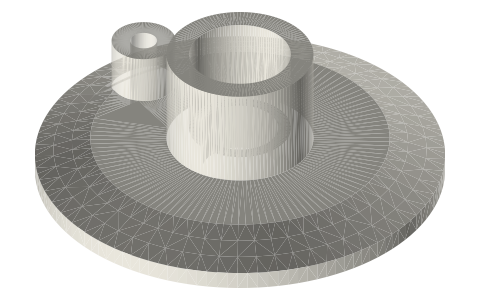

Tri-clamp end cap with a Ø15.9 socket for a 10 mL syringe, 1.5, 2 and 3 in
How do I mount a syringe in a tri-clamp end cap? · Hardware · basis: ISO 2852 cap face with a Ø15.9 socket (10 mL syringe barrel OD) and an M5 port (Ø4.2 tap hole)
Also called: syringe power cylinder stirling, tri clamp cap syringe, 10ml syringe stirling head, gamma stirling power head, tri clamp power head
Long Earth Society build part. The displacers and heads the LES tri-clamp engines are built from. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- An ISO 2852 end cap carrying a 10 mL syringe barrel as the power cylinder, on centre.
- Socket Ø15.9 × 14 deep (floor 8 mm above the face) in a Ø22.9 boss that stands 16 mm off the back of the 6 mm cap; a Ø11.9 port through the floor joins the barrel to the engine.
- Opposite side: an M5 port (Ø4.2 tap hole) in a Ø10 boss for a sensor, a vent or a second transfer line.
- The 10 mL barrel's 14.5 mm bore sweeps about 2 mL per 12 mm of plunger stroke.
Tri-clamp end cap with a Ø15.9 socket for a 10 mL syringe, 1.5, 2… size chart
| size (in) | flange od (mm) | socket (mm) | socket depth (mm) | port (mm) | m5 tap (mm) | overall h (mm) |
|---|---|---|---|---|---|---|
| 1.5 | 50.5 | 15.9 | 14 | 11.9 | 4.2 | 22 |
| 2 | 64.0 | 15.9 | 14 | 11.9 | 4.2 | 22 |
| 3 | 91.0 | 15.9 | 14 | 11.9 | 4.2 | 22 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| syringe socket | Ø15.9 | 10 mL syringe barrel | socket | head-power-* |
| head faces | ISO 2852 | ferrule face + Type B gasket | clamp | head-* |
| vent / instrument port | Ø4.2 | M5 tap drill | designed | head-power-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Tri-clamp Stirling engine builds | web, video | LES site |
| James R. Senft | An Introduction to Low Temperature Differential Stirling Engines (displacer and gap design) | book | Moriya Press verify |
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| head-power-syringe-1.5in | 1.5 in ISO 2852 cap: socket for a 10 mL syringe barrel (Ø15.9) as the power cylinder, M5 instrument/vent port | STEP · STL |
| head-power-syringe-2in | 2 in ISO 2852 cap: socket for a 10 mL syringe barrel (Ø15.9) as the power cylinder, M5 instrument/vent port | STEP · STL |
| head-power-syringe-3in | 3 in ISO 2852 cap: socket for a 10 mL syringe barrel (Ø15.9) as the power cylinder, M5 instrument/vent port | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cap-syringe-socket

How it fits
Goes in or on
Connects to
Also needed
Questions
Can I use a syringe as the power cylinder on a tri-clamp engine?
Yes: this head has a Ø15.9 × 14 socket for a 10 mL barrel on centre, with a Ø11.9 port into the engine.
How much does a 10 mL syringe sweep?
Its 14.5 mm bore sweeps about 2 mL per 12 mm of stroke.
What is the M5 hole for?
An extra port: a sensor, a vent or a second line, Ø4.2 for an M5 thread.
