2 in tri-clamp cap with two gear-shaft walls

What 2 inch tri-clamp cap carries a pair of gear shafts? · Hardware · basis: ISO 2852 cap face; 625 bearing (5 × 16 × 5) pockets on the rhombic gear centre distance 66; heights and planes from the rhombic kinematics in tools/rhombic_geom.py

Also called: rhombic drive mount tri clamp, rhombic drive frame, beta stirling tri clamp head, rhombic gear plate mount

Long Earth Society build part. The connectors between rods, cranks and drives on the LES engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • An ISO 2852 cap face for the 2 in ferrule, a Ø50.8 pedestal clear of the clamp, and a 96 × 87 × 4 platform at 14 mm with a Ø24 rod window on the spool axis.
  • Two walls, 5 mm thick and 96 wide, stand on the platform behind the spool axis (y -31..-26 and -61..-56); each has two Ø16 through pockets for 625 bearings (fit: press) at x ±33, 62 mm above the face: the two Ø5 gear shafts, 66 mm apart, the meshing distance of the module 1.5 × 44 T gears.
  • The gears hang in front of the front wall on the shaft ends; links and yokes are in front of them on the rod axis. At 62 mm the gears, the lower links and the lower yoke all stay above the platform through a full turn.
  • The rear wall's shaft collars and the 1 mm spacers between gear hubs and front bearings hold each shaft axially.

2 in tri-clamp cap with two gear-shaft walls size chart

featuresize (mm)position (mm)
ISO 2852 face2 in (Ø64 rim)z 0
platform96 × 87 × 4z 14..18
walls96 × 5, to z 75y -31..-26, -61..-56
625 pocketsØ16 throughx ±33, z 62
rod windowØ24on the axis

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
rhombic head faceISO 2852ferrule face + Type B gasketclamprhombic-frame-head-*
rhombic head bearing pocketsØ16 through, 5625 bearing (gear shafts)pressrhombic-frame-head-*
rhombic head rod windowØ24tube rod, plug stub, lower yoke boss (no contact)designedrhombic-frame-head-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyTri-clamp Stirling engine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rhombic-frame-head-2in2 in rhombic frame head: ISO 2852 cap face, Ø50.8 pedestal to 14, 96 × 87 platform 14..18, two 5 mm walls (y -31..-26 and -61..-56 behind the spool axis) with Ø16 through pockets for 625 bearings at x ±33, 62 above the face; Ø24 rod window on the axisSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cap-gear-shaft-walls-2in

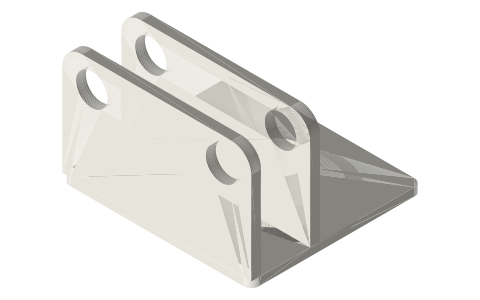

2 in tri-clamp cap with two gear-shaft walls, isometric render of a generated part
Render of rhombic-frame-head-2in from the free STEP; not to scale.

Questions

How does the rhombic drive attach to a tri-clamp spool?

The frame head clamps on the spool's open ferrule like any cap; its two walls carry the two gear shafts in 625 bearings, 66 mm apart and 62 mm above the face.

Which bearings does the rhombic frame head take?

Four 625s (5 × 16 × 5), two per wall, flush in Ø16 through pockets.
