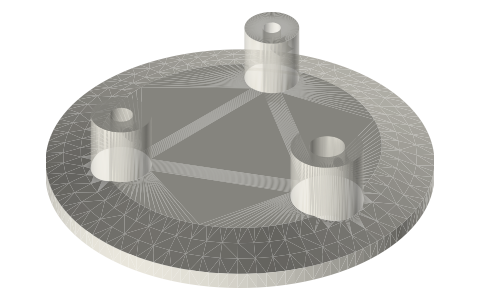

Tri-clamp instrument cap with Ø6, Ø4 and Ø3 probe ports, 1.5, 2 and 3 in
What tri-clamp cap takes a thermocouple or pressure probe? · Hardware · basis: ISO 2852 cap face with three ported bosses on the C2 − 16 circle, each with an M3 pinch hole (Ø2.5)
Also called: tri clamp cap thermocouple port, ds18b20 tri clamp, tri clamp instrument cap, temperature probe tri clamp end cap, tri clamp sensor port
Long Earth Society build part. The displacers and heads the LES tri-clamp engines are built from. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- An ISO 2852 end cap with three probe ports, so a cylinder can be instrumented without drilling a flat cap.
- Ports: Ø6 (a DS18B20 sleeve), Ø3 (a K-type sheath) and Ø4 (a 4 mm tube), 120° apart on a circle of radius C2/2 − 8 (13.75 / 20.25 / 33.75 mm for 1.5 / 2 / 3 in).
- Each port has a boss 6 mm larger than its bore, 10 mm tall on the back of the 6 mm cap, and an Ø2.5 radial hole at 11 mm for an M3 pinch screw that holds the probe.
Tri-clamp instrument cap with Ø6, Ø4 and Ø3 probe ports, 1.5, 2 and… size chart
| size (in) | flange od (mm) | port circle r (mm) | ports (mm) | pinch |
|---|---|---|---|---|
| 1.5 | 50.5 | 13.75 | Ø6 / Ø3 / Ø4 | M3 (Ø2.5) |
| 2 | 64.0 | 20.25 | Ø6 / Ø3 / Ø4 | M3 (Ø2.5) |
| 3 | 91.0 | 33.75 | Ø6 / Ø3 / Ø4 | M3 (Ø2.5) |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| head faces | ISO 2852 | ferrule face + Type B gasket | clamp | head-* |
| probe / port bores | Ø6 / Ø3 / Ø4 | DS18B20 sleeve / K-type sheath / 4 mm tube (M3 pinch) | slide | head-instrument-* |
| pinch screw holes | Ø2.5 | M3 tap drill | designed | head-instrument-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Tri-clamp Stirling engine builds | web, video | LES site |
| James R. Senft | An Introduction to Low Temperature Differential Stirling Engines (displacer and gap design) | book | Moriya Press verify |
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| head-instrument-1.5in | 1.5 in ISO 2852 cap: Ø6 bore for a DS18B20 sleeve, Ø3 for a K-type sheath, Ø4 port for a 4 mm tube, each with an M3 pinch screw (Ø2.5 tap drill) | STEP · STL |
| head-instrument-2in | 2 in ISO 2852 cap: Ø6 bore for a DS18B20 sleeve, Ø3 for a K-type sheath, Ø4 port for a 4 mm tube, each with an M3 pinch screw (Ø2.5 tap drill) | STEP · STL |
| head-instrument-3in | 3 in ISO 2852 cap: Ø6 bore for a DS18B20 sleeve, Ø3 for a K-type sheath, Ø4 port for a 4 mm tube, each with an M3 pinch screw (Ø2.5 tap drill) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-instrument-cap

How it fits
Goes in or on
Connects to
Also needed
You might also need
Questions
What probes fit the instrument head?
A Ø6 DS18B20 sleeve, a Ø3 K-type sheath and a 4 mm tube, each in its own bore with an M3 pinch screw.
Where are the ports?
120° apart on a 20.25 mm radius on the 2 in head (13.75 on 1.5 in, 33.75 on 3 in).
