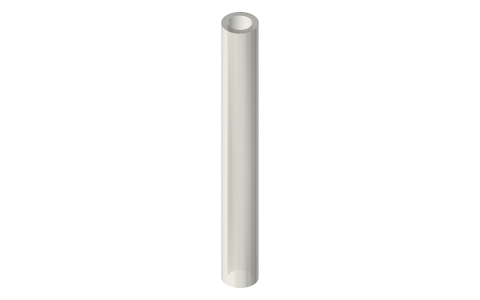

Silicone tube 1 × 3 to 10 × 14 mm (ID × OD)
What sizes does small silicone tube come in? · Hardware · basis: Common silicone tube sizes (ID × OD, 1–2 mm wall); each size as a 50 mm length, and 4 × 6 also at the lengths the syringe engines' transfer lines are cut to
Also called: silicone tube sizes, silicone tubing id od, 4x6 silicone tube, transfer port tube stirling, silicone hose dimensions
Used in Long Earth Society builds. Collapsing one-way valve (balloon → duckbill) · Water-tube valve: the self-regulating air charge · Water check valve, short demo
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 8 in table
Notes
- Silicone tube sizes, ID × OD: 1×3, 2×4, 3×5, 4×6, 5×8, 6×9, 8×12, 10×14 mm; walls 1.0 to 2.0 mm. Each size is a 50 mm length at exact ID and OD; 4 × 6 also comes cut to 20, 30 and 151 mm.
- The tube stretches over a barb larger than its ID.
- For a transfer port on a can or test-tube Stirling I use 4 mm ID tube kept as short as possible, since every mL inside the tube is dead volume.
- The barbs on the hose-barb page are drawn with the shank at the tube ID and ridges at ID + 1.2 for each size.
- Cut lengths on the engines here: can engine 20 + 20 + 20 (cap barb up, across, up into the Luer tip, through two transfer elbows); Ross yoke alpha 20 + 30 + 20 through two elbows; alpha V-twin 20 + 151 + 151 + 20 through three elbows.
Silicone tube 1 × 3 to 10 × 14 mm size chart
| id (mm) | od (mm) | wall (mm) | barb |
|---|---|---|---|
| 1 | 3 | 1.0 | — |
| 2 | 4 | 1.0 | barb-2mm |
| 3 | 5 | 1.0 | barb-3mm |
| 4 | 6 | 1.0 | barb-4mm |
| 5 | 8 | 1.5 | — |
| 6 | 9 | 1.5 | barb-6mm |
| 8 | 12 | 2.0 | barb-8mm |
| 10 | 14 | 2.0 | — |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| tube ID | 1×3, 2×4, 3×5, 4×6, 5×8, 6×9, 8×12, 10×14 (ID × OD) | hose barb with ridges at ID + 1.2 (tube stretches over it); 4 × 6 on a 4 mm barb | press | silicone-tube-* |
| tube OD | OD per size; walls 1.0 (to 4×6), 1.5 (5×8, 6×9), 2.0 (8×12, 10×14) | clip or grommet bore at the tube OD | slide | silicone-tube-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Hose barb | web | CC BY-SA 4.0 (text) |
| Wikipedia | Push-fit fitting | web | CC BY-SA 4.0 (text) |
| McMaster-Carr | Tubing (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| Long Earth Society | Engine and rig builds | web, video | LES site |
Free files
★ Free files 11 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| silicone-tube-1x3-50 | silicone tube 1 ID × 3 OD, 50 mm | STEP · STL |
| silicone-tube-2x4-50 | silicone tube 2 ID × 4 OD, 50 mm | STEP · STL |
| silicone-tube-3x5-50 | silicone tube 3 ID × 5 OD, 50 mm | STEP · STL |
| silicone-tube-4x6-50 | silicone tube 4 ID × 6 OD, 50 mm | STEP · STL |
| silicone-tube-5x8-50 | silicone tube 5 ID × 8 OD, 50 mm | STEP · STL |
| silicone-tube-6x9-50 | silicone tube 6 ID × 9 OD, 50 mm | STEP · STL |
| silicone-tube-8x12-50 | silicone tube 8 ID × 12 OD, 50 mm | STEP · STL |
| silicone-tube-10x14-50 | silicone tube 10 ID × 14 OD, 50 mm | STEP · STL |
| silicone-tube-4x6-20 | silicone tube 4 ID × 6 OD, cut to 20 mm | STEP · STL |
| silicone-tube-4x6-30 | silicone tube 4 ID × 6 OD, cut to 30 mm | STEP · STL |
| silicone-tube-4x6-151 | silicone tube 4 ID × 6 OD, cut to 151 mm | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=silicone-tube

How it fits
Goes in or on
Alternatives
Also needed
You might also need
Questions
What silicone tube for a Stirling transfer port?
4 mm ID × 6 mm OD, kept short (under about 30 mm), on a 4 mm barb.
What wall thickness is silicone tube?
1.0 mm up to 4 × 6, 1.5 mm for 5 × 8 and 6 × 9, 2.0 mm for 8 × 12 and 10 × 14.
