Can caps for 53.3, 58, 66 and 76.2 mm cans
What cap fits the top of a 53, 58, 66 or 76 mm can? · Standard part · basis: Bore drawn at the can body OD of the can entries (Ø66 12 oz, Ø58 sleek, Ø53.3 slim, Ø76.2 steel 300); rod bore at the 2 mm rod, hose barb at the barb-4mm profile
Also called: soda can stirling engine cap, can engine cap stl, 66 mm can cap, can stirling top cap dimensions
Long Earth Society build part. The printed parts for the LES can engine, sized to the cans, syringes, CDs and bearings in the library. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 4 in table
Notes

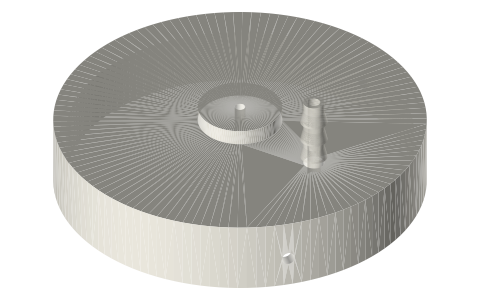

- The cap closes the open end of the can and is the cold end of the can engine's displacer cylinder. Its bore is the can body OD exactly (Ø66, Ø58, Ø53.3 or Ø76.2), 11 mm deep, under a 3 mm top wall; the outside is the can OD + 4.8 (Ø70.8 for the 66 mm can).
- On centre a Ø16 boss carries a Ø2 bore straight through for the 2 mm displacer rod (fit: run). The bore is the rod guide and the seal; nothing is pressed into it.
- The transfer port is an integral Ø4 hose barb, the same profile as barb-4mm on the silicone tube page, set 0.3 × the can diameter off centre (19.8 mm on the 66 mm cap); the 4 × 6 transfer tube goes from it to the power cylinder.
- Three Ø2.5 holes (M3 tap size) at 120°, 6 mm above the open face, take grub screws that grip the can wall. Every mating size is in the Mating features table.
Can caps for 53.3, 58, 66 and 76.2 mm cans size chart
| file | can | bore | outside Ø | height |
|---|---|---|---|---|
| can-cap-66 | 12 oz standard | 66.0 | 70.8 | 17 |
| can-cap-58 | sleek | 58.0 | 62.8 | 17 |
| can-cap-53.3 | slim | 53.3 | 58.1 | 17 |
| can-cap-76.2 | steel 300 food can | 76.2 | 81.0 | 17 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| can-cap bore | Ø66 / Ø58 / Ø53.3 / Ø76.2 | can body OD (three M3 grubs grip it) | slide | can-cap-* |
| grub holes | Ø2.5 | M3 tap drill | designed | can-cap-* |
| rod-guide bore | Ø2 × 6 | 2 mm wire displacer rod | run | can-cap-* |
| transfer-port barb | Ø4 shank, 3 ridges to Ø5.2, Ø2.5 bore, 14 proud | 4 mm ID tube | designed | can-cap-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Can engine build | video, web | LES site |
| Long Earth Society | Engine builds (videos and write-ups) | web, video | LES site |
Free files
★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| can-cap-66 | cap for a Ø66 can: bore Ø66 (the can body OD, exact), Ø2 rod-guide bore for the 2 mm wire rod, integral transfer-port barb for 4 mm ID tube (Ø4 shank, three ridges to Ø5.2, Ø2.5 bore, 14 proud), 3 × M3 tapped (Ø2.5) grub holes | STEP · STL |
| can-cap-58 | cap for a Ø58 can: bore Ø58 (the can body OD, exact), Ø2 rod-guide bore for the 2 mm wire rod, integral transfer-port barb for 4 mm ID tube (Ø4 shank, three ridges to Ø5.2, Ø2.5 bore, 14 proud), 3 × M3 tapped (Ø2.5) grub holes | STEP · STL |
| can-cap-53.3 | cap for a Ø53.3 can: bore Ø53.3 (the can body OD, exact), Ø2 rod-guide bore for the 2 mm wire rod, integral transfer-port barb for 4 mm ID tube (Ø4 shank, three ridges to Ø5.2, Ø2.5 bore, 14 proud), 3 × M3 tapped (Ø2.5) grub holes | STEP · STL |
| can-cap-76.2 | cap for a Ø76.2 can: bore Ø76.2 (the can body OD, exact), Ø2 rod-guide bore for the 2 mm wire rod, integral transfer-port barb for 4 mm ID tube (Ø4 shank, three ridges to Ø5.2, Ø2.5 bore, 14 proud), 3 × M3 tapped (Ø2.5) grub holes | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=can-top-caps

How it fits

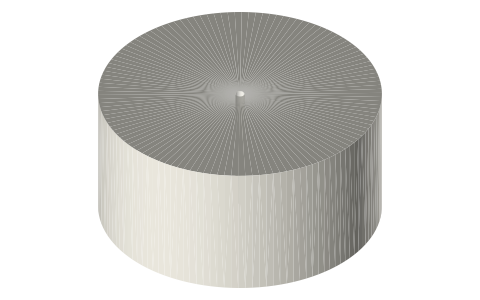

Parts that fit it
Goes in or on

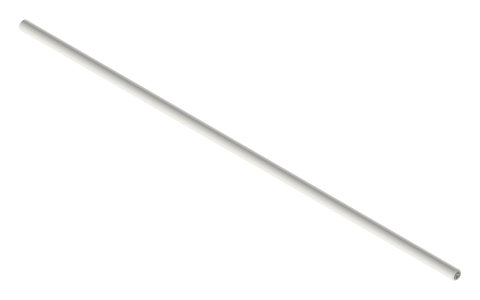

Connects to
Also needed

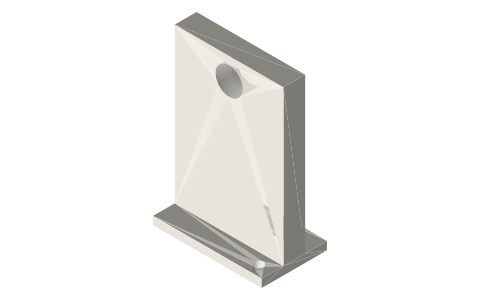

You might also need
Questions
What size cap fits a 12 oz soda can?
Can-cap-66: Ø66.0 bore (the can body OD), 11 mm deep, Ø70.8 outside, 17 mm tall overall.
How does the displacer rod pass through the cap?
Through a Ø2 bore straight through the Ø16 centre boss, drawn at the 2 mm rod (fit: run); the bore itself is the guide.
Where does the transfer tube connect?
To the integral Ø4 hose barb (barb-4mm profile) 0.3 × the can diameter off centre, 19.8 mm on the 66 mm cap.
