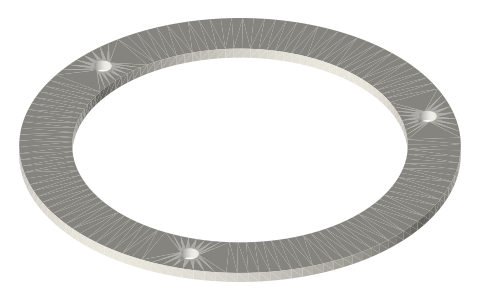

Flexure stack spacer ring: Ø40 to Ø120 × 2 mm
What spaces the leaves in a flexure bearing stack? · Hardware · basis: Ring = the flexure rim: OD × (OD − 2 × 0.12 OD), 2 mm thick
Also called: flexure spacer ring, flexure stack spacer, 80mm spacer ring 2mm
Used in Long Earth Society builds. Laser-cut linear flexure bearing
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 5 in table
Notes
- A plain ring the size of a flexure leaf's rim, 2 mm thick, that sits between leaf rims so the arms can flex without touching.
- Ø40 × 4.8 wide, Ø60 × 7.2, Ø80 × 9.6, Ø100 × 12, Ø120 × 14.4; all 2.0 mm thick, with no rim holes.
Flexure stack spacer ring: Ø40 to Ø120 × 2 mm size chart
| od (mm) | id (mm) | width (mm) | thickness (mm) |
|---|---|---|---|
| 40 | 30.4 | 4.8 | 2 |
| 60 | 45.6 | 7.2 | 2 |
| 80 | 60.8 | 9.6 | 2 |
| 100 | 76 | 12 | 2 |
| 120 | 91.2 | 14.4 | 2 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| spacer rim holes | Ø3.4 × 3 on R = 0.44·OD (R35.2 on Ø80) | M3 stack screws (clearance) | designed | spacer-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Free-piston Stirling convertor flexure bearing development and life testing (2005) | US Government work, public domain | |
| NASA (NTRS, public domain) | Flexure bearing design for free-piston Stirling engines (1986) | US Government work, public domain | |
| NASA (NTRS, public domain) | Advanced Stirling Radioisotope Generator (ASRG) engineering unit (2011) | US Government work, public domain | |
| Wikipedia | Flexure bearing | web | CC BY-SA 4.0 (text) |
| Sunpower (AMETEK) | Free-piston Stirling technology overview | web | Sunpower site verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 5 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| spacer-40-t2 | stack spacer ring Ø40, 4.8 wide, 2 thick (sets the gap between leaves), 3 × Ø3.4 on R17.6 (the leaves' rim-hole circle) for the stack screws | STEP · STL |
| spacer-60-t2 | stack spacer ring Ø60, 7.2 wide, 2 thick (sets the gap between leaves), 3 × Ø3.4 on R26.4 (the leaves' rim-hole circle) for the stack screws | STEP · STL |
| spacer-80-t2 | stack spacer ring Ø80, 9.6 wide, 2 thick (sets the gap between leaves), 3 × Ø3.4 on R35.2 (the leaves' rim-hole circle) for the stack screws | STEP · STL |
| spacer-100-t2 | stack spacer ring Ø100, 12 wide, 2 thick (sets the gap between leaves), 3 × Ø3.4 on R44 (the leaves' rim-hole circle) for the stack screws | STEP · STL |
| spacer-120-t2 | stack spacer ring Ø120, 14.4 wide, 2 thick (sets the gap between leaves), 3 × Ø3.4 on R52.8 (the leaves' rim-hole circle) for the stack screws | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=flexure-stack-spacer

How it fits

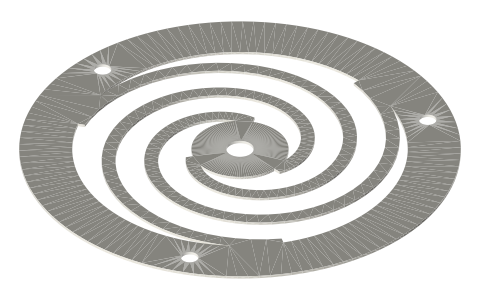

Goes in or on

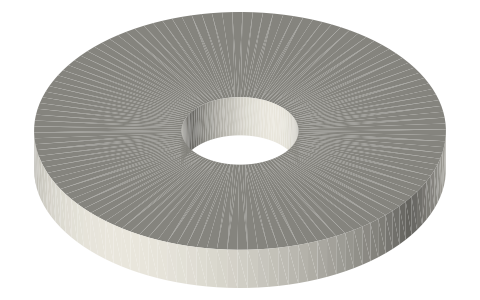

Connects to

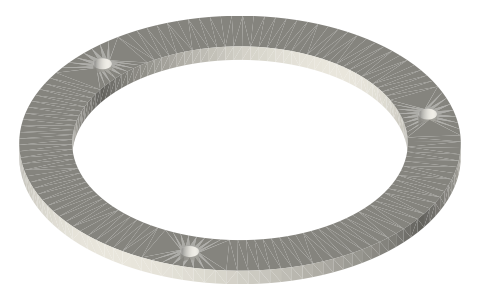

Also needed
Questions
How thick are the flexure stack spacers?
2.0 mm, the width of the leaf rim (9.6 mm on Ø80).
What size spacer goes with an Ø80 flexure?
Spacer-80-t2: Ø80 OD × Ø60.8 ID × 2.0 mm.
