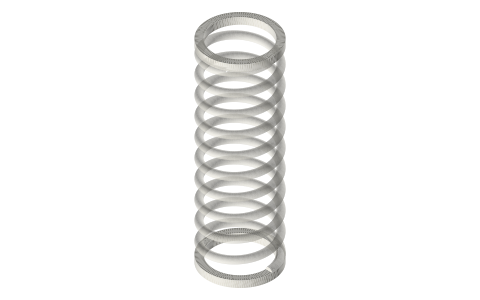

Compression springs, wire Ø0.5–1.6, OD 6–16
How do I calculate the rate of a compression spring? · Hardware · basis: Helical compression spring with closed ends; rate k = G d⁴ / (8 D³ n), D = OD − d
Also called: compression spring rate formula, compression spring dimensions, spring index, compression spring step file, spring solid height
Long Earth Society build part. Pawl returns, diaphragm bias and belt tensioners on the LES rigs. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 5 in table
Notes
- Envelopes at exact wire Ø, OD, ID (OD − 2 × wire) and free length, with closed (flat-ring) ends.
- Rate k = G d⁴ / (8 D³ n): G the shear modulus of the wire, d the wire Ø, D the mean coil Ø (OD − d), n the active coils. Halving the coils doubles the rate.
- Spring index D/d between 4 and 12 is makeable, 6–9 comfortable; these are 9 except the 0.5 × 6 at 11.
- Solid height is about (n + 2) × d; usable deflection about 0.8 × (free length − solid height). A pocket for one is drawn at the OD and a guide rod at the ID (see Mating features).
Compression springs, wire Ø0.5–1.6, OD 6–16 size chart
| file | wire Ø | OD | ID | free length | coils | index D/d |
|---|---|---|---|---|---|---|
| compression-d0.5-od6-l20 | 0.5 | 6 | 5.0 | 20 | 8 | 11.0 |
| compression-d0.8-od8-l25 | 0.8 | 8 | 6.4 | 25 | 10 | 9.0 |
| compression-d1-od10-l30 | 1.0 | 10 | 8.0 | 30 | 10 | 9.0 |
| compression-d1.2-od12-l40 | 1.2 | 12 | 9.6 | 40 | 12 | 9.0 |
| compression-d1.6-od16-l50 | 1.6 | 16 | 12.8 | 50 | 10 | 9.0 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| spring OD | OD (6–16) | pocket of the same Ø | socket | all |
| spring ID | OD − 2 × wire | guide rod or arbor of the same Ø | socket | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Spring (device) | web | CC BY-SA 4.0 (text) |
| McMaster-Carr | Compression springs (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| Lee Spring | Spring design formulas | web | Lee Spring site verify |
| Long Earth Society | Engine and rig builds | web, video | LES site |
Free files
★ Free files 5 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| compression-d0.5-od6-l20 | compression spring envelope: wire Ø0.5, OD 6, ID 5, 20 mm free length, closed ends, 8 coils | STEP · STL |
| compression-d0.8-od8-l25 | compression spring envelope: wire Ø0.8, OD 8, ID 6.4, 25 mm free length, closed ends, 10 coils | STEP · STL |
| compression-d1-od10-l30 | compression spring envelope: wire Ø1.0, OD 10, ID 8, 30 mm free length, closed ends, 10 coils | STEP · STL |
| compression-d1.2-od12-l40 | compression spring envelope: wire Ø1.2, OD 12, ID 9.6, 40 mm free length, closed ends, 12 coils | STEP · STL |
| compression-d1.6-od16-l50 | compression spring envelope: wire Ø1.6, OD 16, ID 12.8, 50 mm free length, closed ends, 10 coils | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=compression-springs

How it fits
Goes in or on
Alternatives
You might also need
Questions
How do I calculate a compression spring rate?
k = G·d⁴ / (8·D³·n), with d wire Ø, D = OD − d, n active coils, G the wire's shear modulus.
What is the solid height?
About (coils + 2) × wire Ø: the 10-coil, 1.0 wire, 30 long spring is about 12 mm solid.
