Cyclograph rule 150 × 15 × 4 with pivot and brace holes

What is a cyclograph rule? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: cyclograph rule, arc drawing rule, regla del ciclógrafo, Zyklographenlineal

Exact dimensions. True size, with no tolerance added.

length
150.0 mm
width
15.0 mm
height
4.0 mm

Notes

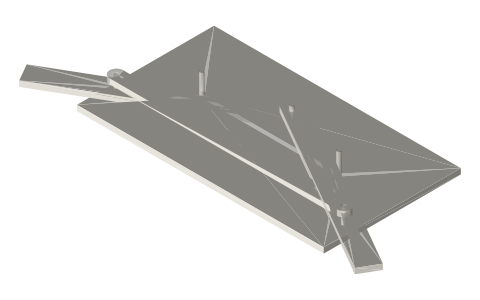

  • 150 × 15 × 4 straight rule with a Ø3 pivot hole at (5.77, 10) from its working corner and a Ø3 brace hole at (100, 7.5): two of them pinned at the apex and braced make a rigid 120° angle whose edges run on two pins.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cyclograph rule 150 × 15 × 4 with pivot and brace holes size chart

dimensionvalue
rule150 × 15 × 4 mm
pivot holeØ3 at (5.77, 10)
brace holeØ3 at (100, 7.5)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 403: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cyclograph-rule-150x15x4rule, working edge y = 0, corner at the origin, z 0..4STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cyclograph-rule-150x15x4

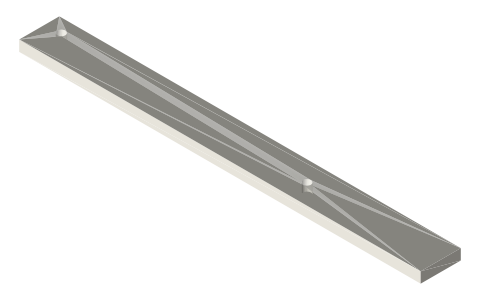

Cyclograph rule 150 × 15 × 4 with pivot and brace holes, isometric render of a generated part
Render of cyclograph-rule-150x15x4 from the free STEP; not to scale.

Fits with

Questions

What is a cyclograph rule?

150 × 15 × 4 straight rule with a Ø3 pivot hole at (5.77, 10) from its working corner and a Ø3 brace hole at (100, 7.5): two of them pinned at the apex and braced make a rigid 120° angle whose edges run on two pins.
