Cyclograph: fixed-angle rules sliding on two pins draw a circular arc

How does a cyclograph draw an arc without its centre? · Hardware · basis: Xem Studio design following Brown No. 403 (1868)

Also called: cyclograph, arc drawing instrument, inscribed angle arc tool, arch setting out, ciclógrafo, Zyklograph

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: chord c, radius, rise (versed sine); stays the same: angle φ.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two rules fastened at a fixed angle φ slide with their edges against two pins at the ends of a chord: the apex always sees the chord under the same angle, so (inscribed-angle theorem) it moves on a circular arc through the two pins — no centre needed, which is how flat arches of large radius are set out.
  • Chord 100 mm and φ = 120° give R = c / (2 sin φ) = 57.74 mm and a rise of 28.87 mm. The rules' edges are tangent to the Ø3 pins, so the edge apex runs 1.73 mm inside the pin-centre arc. Drawn at the top of the arc, pins touching both edges.
  • Brown's No. 403 (cyclograph: two rules from the chord's ends to the apex of the versed sine, braced, pencil at the angle).

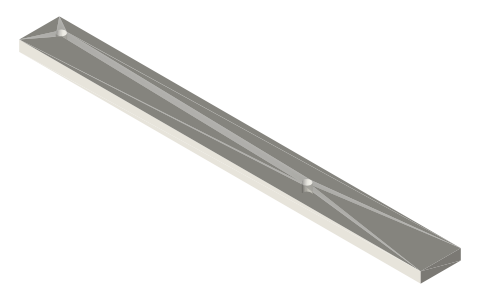

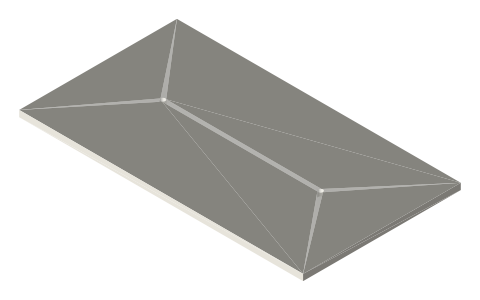

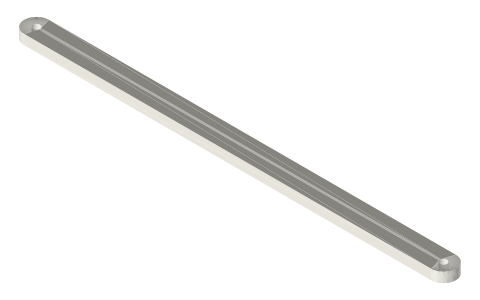

  • Parts (each has its own page): cyclograph-rule-150x15x4, cyclograph-brace-165-71, cyclograph-base-plate-180x100-c100, dowel-pins-metric.
  • Brown's movement No. 403 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Cyclograph: fixed-angle rules sliding on two pins draw a circular arc size chart

parametervalue
chord c100 mm
angle φ120°
radius57.74 mm
rise (versed sine)28.87 mm
rules2 × 150 × 15 × 4

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 403: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cyclograph-arc-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cyclograph-arc-mechanism

Cyclograph: fixed-angle rules sliding on two pins draw a circular arc, isometric render of a generated part
Render of cyclograph-arc-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a cyclograph draw an arc without its centre?

Two rules fastened at a fixed angle φ slide with their edges against two pins at the ends of a chord: the apex always sees the chord under the same angle, so (inscribed-angle theorem) it moves on a circular arc through the two pins — no centre needed, which is how flat arches of large radius are set out.
