DC barrel jacks CUI PJ-063AH / PJ-063BH (5.5 mm plug)

What are the dimensions of a PJ-063 DC barrel jack? · Standard part · basis: KiCad 3D models of the CUI PJ-063AH (2.0 mm pin) and PJ-063BH (2.5 mm pin) horizontal barrel jacks

Also called: pj-063 barrel jack, dc barrel jack dimensions, 5.5 x 2.1 jack size, pj-063ah step, barrel jack 3d model

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Both models are 10 × 13 mm on the board, 9 mm tall above it and 3 mm of pins below (12 overall).
  • PJ-063AH takes a 5.5 mm OD plug on a 2.0 mm centre pin; PJ-063BH a 5.5 mm plug on a 2.5 mm pin.
  • The model comes from the KiCad 3D library (kicad-packages3D), licensed CC BY-SA 4.0 with the KiCad exception, and is rehosted unmodified (STL converted from the STEP) with the library's LICENSE.md and CREDITS.md beside the files; using it in your own design does not make your design share-alike.

DC barrel jacks CUI PJ-063AH / PJ-063BH size chart

partpin (mm)plug od (mm)footprint (mm)above board (mm)
cui-pj-063ah-horizontal2.05.510 × 139
cui-pj-063bh-horizontal2.55.510 × 139

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
PJ-063AH / BH jack10 × 13 on the board, 9 above, pins 3 below5.5 mm OD barrel plug; centre pin 2.0 (AH) / 2.5 (BH)designedcui-pj-063*

Where the files are

Files below are rehosted from this library under its share-alike license, with its license and credits beside them. "verify" = check the license at the link before commercial use.

KiCadkicad-packages3D library (origin of these files)STEP, WRLCC BY-SA 4.0 with KiCad exception

Free files

★ Free files 2 parts. From the KiCad library contributors, rehosted with their license and credits. CC BY-SA 4.0 (KiCad library license, with the KiCad exception). index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cui-pj-063ah-horizontalKiCad Connector_USB: BarrelJack_CUI_PJ-063AH_Horizontal; bbox 13.0 × 12.0 × 10.0 mmSTEP · STL
cui-pj-063bh-horizontalKiCad Connector_USB: BarrelJack_CUI_PJ-063BH_Horizontal; bbox 13.0 × 12.0 × 10.0 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dc-barrel-jack

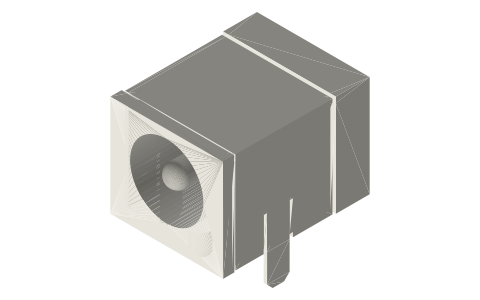

DC barrel jacks CUI PJ-063AH / PJ-063BH (5.5 mm plug), isometric render of a generated part
Render of cui-pj-063ah-horizontal from the free STEP; not to scale.

You might also need

Questions

What is the difference between PJ-063AH and PJ-063BH?

The centre pin: 2.0 mm on the AH, 2.5 mm on the BH; both take a 5.5 mm OD plug.

How big is a PJ-063 barrel jack?

10 × 13 mm on the board and 9 mm tall above it in the KiCad model.
