370 size brushed DC motor: Ø24.4 × 30.8 mm, 2 × M3 on 17

What are the dimensions of a 370 size DC motor? · Hardware · basis: Mabuchi RF-370CA dimension drawing; boss and hole spacing also on the RCDrone 370 listing. Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.

Also called: 370 motor dimensions, 370 motor mounting holes, rf-370 dimensions, 370 dc motor size, 370 motor step, 370 motor stl

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
7 in table

Notes

  • Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.
  • The can is Ø24.4 × 30.8 with a Ø6.45 × 1.7 boss on each end.
  • The Ø2.0 shaft is 42.0 mm long and stands 10.5 mm beyond the front boss: 43.0 mm from the end-cap face to the shaft tip.
  • Two M3 × 0.5 tapped holes on 17.0 mm centres in the face. The drawing gives no thread depth, so the holes are drawn Ø3.0 × 2.0 deep only to mark where they are.
  • The terminal tabs are 18.3 mm apart on the end cap; they and the wire exit are not drawn.
  • The JGA25-370 gearmotor uses this can (see its page).
  • In DIY Stirling builds, brushed DC motors of this kind are turned by the engine and used as a generator (an LED, a resistor or a meter across the leads) or as a load on the flywheel shaft.

370 size brushed DC motor: Ø24.4 × 30.8 mm, 2 × M3 on 17 size chart

featuremmfrom
canØ24.4 × 30.8Mabuchi RF-370CA
front and rear bossØ6.45 × 1.7Mabuchi RF-370CA
shaftØ2.0 × 42.0 longMabuchi RF-370CA
shaft beyond the front boss10.5Mabuchi RF-370CA
end cap to shaft tip43.0Mabuchi RF-370CA
face holes2 × M3 × 0.5 on 17.0Mabuchi RF-370CA, RCDrone
terminal spacing18.3Mabuchi RF-370CA, RCDrone

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
shaftØ2.0pinion, pulley or gear bore (pressed on)pressdc-370-*
front bossØ6.45 × 1.7mount recesssocketdc-370-*
mounting holes2 × M3 × 0.5 on 17.0 (drawn 2.0 deep as position marks)M3 screws through the mountdesigneddc-370-*
canØ24.4cradlesocketdc-370-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Mabuchi Motor (hosted by IBS Electronics)RF-370CA datasheet and dimension drawingPDFmanufacturer datasheet verify
RCDrone370 brushed motor listing with drawing values: Ø24.4 × 30.8, boss Ø6.5 × 1.5, M3 on 17, terminals 18.3 apartweblisting verify

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dc-370-size370 size envelope: Ø24.4 × 30.8 can, Ø6.45 × 1.7 bosses front and rear, Ø2.0 shaft 10.5 beyond the boss, 2 × M3 on 17.0 (2.0 deep position marks)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dc-motor-370-size

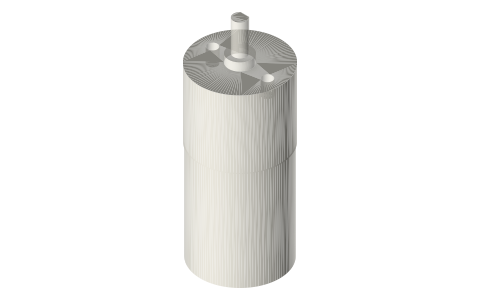

370 size brushed DC motor: Ø24.4 × 30.8 mm, 2 × M3 on 17, isometric render of a generated part
Render of dc-370-size from the free STEP; not to scale.

You might also need

Questions

What are 370 motor dimensions?

Ø24.4 × 30.8 mm can, Ø2.0 shaft 10.5 beyond a Ø6.45 × 1.7 boss (43.0 from the end cap to the tip), two M3 holes 17.0 apart.

What is the 370 motor hole spacing?

Two M3 × 0.5 tapped holes on 17.0 mm centres, either side of the boss.

Is a 370 the same as a 380?

No: the 370 is a Ø24.4 can with M3 on 17.0; the 380 is a Ø27.7 can with M2.6 on 16.0.
