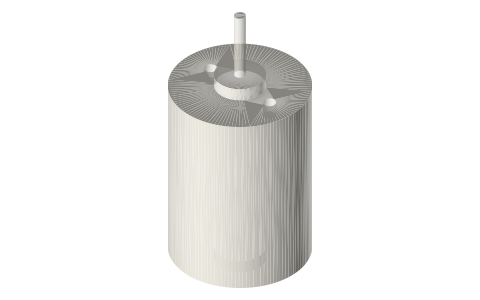

380 / 385 size brushed DC motor: Ø27.7 × 37.8 mm, 2 × M2.6 on 16
What are the dimensions of a 380 size DC motor? · Hardware · basis: Mabuchi RS-380PH and RS-385SH dimension drawings (identical outside sizes); outside size also on the MonotaRO RS-380PH listing, hole spacing on the MakerBazar RS-385 listing. Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.
Also called: 380 motor dimensions, 385 motor dimensions, rs-380 size, rs-385 size, 380 motor mounting holes, 385 motor hole spacing, 380 motor step, 385 motor stl
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 7 in table
Notes
- Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.
- The 380 and 385 share one envelope: a Ø27.7 × 37.8 can with a Ø10.0 × 2.6 boss on each end.
- The Ø2.3 shaft runs 16.4 mm out from the front face. The drawing's 57.0 overall is 0.2 longer than the drawn parts.
- Two M2.6 × 0.45 tapped holes on 16.0 mm centres, drawn at the major diameter 3.0 deep (the usable screw length on the drawing).
- Vent holes, terminal tabs and the wire exit are not drawn. The drawing's Ø29.2 maximum is over the end-cap terminals.
- In DIY Stirling builds, brushed DC motors of this kind are turned by the engine and used as a generator (an LED, a resistor or a meter across the leads) or as a load on the flywheel shaft.
380 / 385 size brushed DC motor: Ø27.7 × 37.8 mm, 2 × M2.6 on 16 size chart
| feature | mm | from |
|---|---|---|
| can | Ø27.7 × 37.8 | Mabuchi RS-380PH / RS-385SH, MonotaRO |
| front and rear boss | Ø10.0 × 2.6 | Mabuchi drawings |
| shaft | Ø2.3 | Mabuchi drawings |
| shaft from the face | 16.4 | Mabuchi drawings |
| face holes | 2 × M2.6 × 0.45 on 16.0 | Mabuchi drawings, MakerBazar |
| usable screw length | 3.0 | Mabuchi drawings |
| largest Ø (terminals) | 29.2 | Mabuchi drawings |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| shaft | Ø2.3 | pinion or pulley bore (pressed on) | press | dc-380-* |
| front boss | Ø10.0 × 2.6 | mount recess | socket | dc-380-* |
| mounting holes | 2 × M2.6 × 0.45 on 16.0, 3.0 usable depth | M2.6 screws through the mount | designed | dc-380-* |
| can | Ø27.7 | cradle | socket | dc-380-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Mabuchi Motor (hosted by electro-tech-online) | RS-380PH datasheet and dimension drawing | manufacturer datasheet verify | |
| Mabuchi Motor (compiled catalogue, hosted by mikrocontroller.net) | Carbon-brush and metal-brush motor datasheets incl. RS-360RH, RS-365SH, RS-385SH, RS-550PC, RS-555VC, RS-775VC dimension drawings | manufacturer datasheets verify | |
| MonotaRO | RS-380PH listing: outside 37.8 × 27.7, shaft Ø2.3, tapped mounting | web | listing verify |
| MakerBazar | RS-385 listing: two M2.6 × 0.45 tapped holes on 16 mm centres | web | listing verify |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| dc-380-385-size | 380 / 385 size envelope: Ø27.7 × 37.8 can, Ø10.0 × 2.6 bosses front and rear, Ø2.3 shaft 16.4 from the face, 2 × M2.6 on 16.0 drawn Ø2.6 × 3.0 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=dc-motor-380-size
