Double-helical (herringbone) gears, 20 : 30, helix 20°

Why use double-helical (herringbone) gears? · Hardware · basis: Xem Studio design following Brown No. 41 (1868)

Also called: herringbone gears, double helical gears, chevron gears, engranajes bihelicoidales, Pfeilverzahnung

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: face, centre distance; stays the same: helix; step to the nearest standard size (and redraw the hole or pocket it fits): normal module.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Each gear has two rows of oblique teeth of opposite hand meeting at the middle of the face: like single helical gears the teeth engage gradually and several are always in contact, but the two axial thrusts cancel, so no thrust bearing is needed.
  • Here normal module 1.5, 20 and 30 teeth, helix 20° each way, 16 mm face; centre distance (r₁ + r₂) = 39.91 mm with the transverse module 1.6. Every transverse section is an exact involute spur mesh.
  • Brown's No. 41 shows a second pair of oblique-toothed wheels; this page draws the double-helical form, the answer to the end thrust of No. 40.

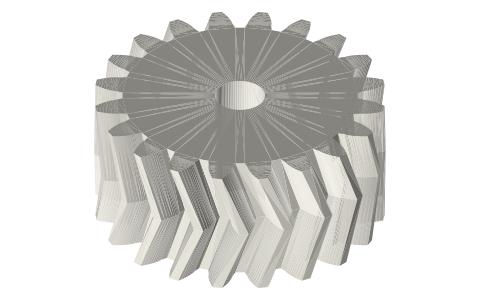

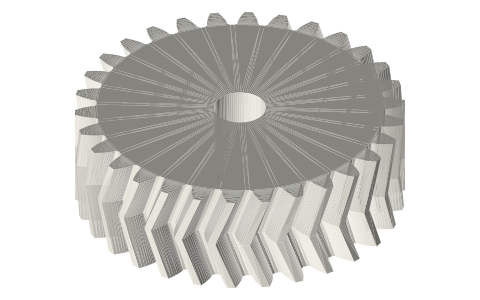

  • Parts (each has its own page): double-helical-gear-mn1-5-20t-beta20-bore6, double-helical-gear-mn1-5-30t-beta20-bore8, linear-shafts-h6.
  • Brown's movement No. 41 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Double-helical (herringbone) gears, 20 : 30, helix 20° size chart

parametervalue
normal module1.5
teeth20 / 30
helix20°, both hands on each gear
face16 mm
centre distance39.91 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 41: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
double-helical-gears-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=double-helical-gears-mechanism

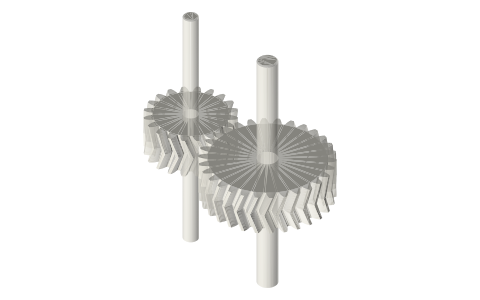

Double-helical (herringbone) gears, 20 : 30, helix 20°, isometric render of a generated part
Render of double-helical-gears-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

Why use double-helical (herringbone) gears?

Each gear has two rows of oblique teeth of opposite hand meeting at the middle of the face: like single helical gears the teeth engage gradually and several are always in contact, but the two axial thrusts cancel, so no thrust bearing is needed.
