Double-sided rack between two equal gears
Why drive a rack from both sides? · Hardware · basis: Xem Studio design following Brown No. 115 (1868)
Also called: double rack and pinions, rack between two gears, two gear rack drive, cremallera entre dos engranajes, Zahnstange zwischen zwei Rädern
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: travel per turn; stays the same: gears, rack; step to the nearest standard size (and redraw the hole or pocket it fits): shaft centres.
- Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

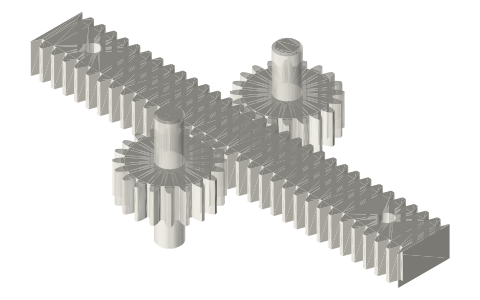

- Two equal gears on fixed shafts 32 mm apart, turning in opposite directions, mesh with the two toothed edges of one rack: the rack is pushed with equal force and speed on both edges, so it runs straight with no side load on its guides.
- Module 1, 20-tooth gears (pitch Ø20) with their axes 10 mm outside each pitch line; one turn moves the rack 62.83 mm. Drawn with the rack one pitch (π mm) along.
- Brown's No. 115 (two equal toothed wheels driving a double rack).

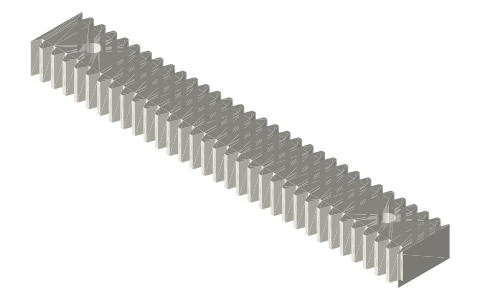

- Parts (each has its own page): double-sided-rack-m1-100-pitch-12, spur-gears-module-1, dowel-pins-metric.
- Brown's movement No. 115 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Double-sided rack between two equal gears size chart
| parameter | value |
|---|---|
| gears | 2 × 20 T, module 1 |
| shaft centres | 32 mm |
| rack | 100 mm, teeth both sides |
| travel per turn | 62.83 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 115: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| double-rack-two-gears-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=double-rack-two-gears-mechanism

Fits with
Questions
Why drive a rack from both sides?
Two equal gears on fixed shafts 32 mm apart, turning in opposite directions, mesh with the two toothed edges of one rack: the rack is pushed with equal force and speed on both edges, so it runs straight with no side load on its guides.
