Dovetail bridle joint

What is a dovetail bridle joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: dovetailed bridle, dovetail slot joint, horquilla en cola de milano, Schwalbenschwanz-Scherzapfen

Exact dimensions. True size, with no tolerance added.

length
60.0 mm
width
60.0 mm
height
20.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • A corner bridle whose tenon is dovetailed, so the corner cannot pull open.

Dovetail bridle joint size chart

dimensionvalue
stock20 × 20 mm square
partsslotted member, tenon member
tenon6.67 → 13.33 mm (1:6), 20 mm long
assemblesslides in from the side
holdsracking, and pulling the tenon member out lengthwise

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dovetail-bridle-joint-slotted-memberMember with a dovetail-shaped open slotSTEP · STL
dovetail-bridle-joint-tenon-memberMember with a dovetailed open tenonSTEP · STL
dovetail-bridle-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dovetail-bridle-joint

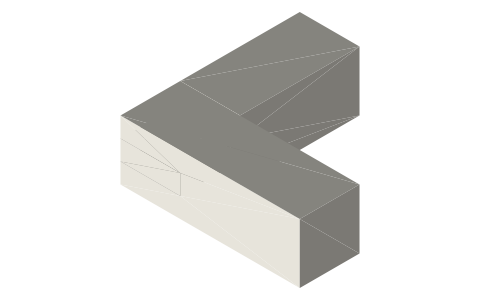

Dovetail bridle joint, isometric render of a generated part
Render of dovetail-bridle-joint-assembled from the free STEP; not to scale.

Fits with

Questions

Why dovetail a bridle?

So the tenon member cannot slide out of the slot lengthwise.
