Dovetail halving joint (dovetail lap)

What are the proportions of a dovetail halving joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: dovetail halving joint, dovetail lap joint, dovetail half lap, lapped dovetail tee, junta cola de milano a media madera, Schwalbenschwanzblatt

Exact dimensions. True size, with no tolerance added.

length
80.0 mm
width
70.0 mm
height
20.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • A T-lap whose lap is dovetail-shaped, so the end member cannot pull out of the cross member.
  • Print both parts flat, lap face up.

Dovetail halving joint size chart

dimensionvalue
stock20 × 20 mm square
partscross member, end member
tail12 mm at the shoulder → 18.67 mm at the end, 20 mm long
slope1:6 (9.46°)
depth10 mm (half)
assemblesthe end member drops in from above
holdspull-out along the end member, and racking

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dovetail-halving-joint-cross-memberThrough member: dovetail socket in the top halfSTEP · STL
dovetail-halving-joint-end-memberEnd member: half-depth dovetail at its endSTEP · STL
dovetail-halving-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dovetail-halving-joint

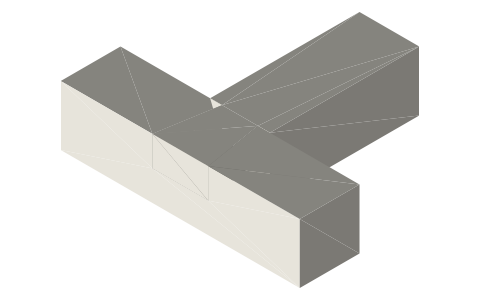

Dovetail halving joint (dovetail lap), isometric render of a generated part
Render of dovetail-halving-joint-assembled from the free STEP; not to scale.

Fits with

Questions

What angle is a dovetail?

1:6 (9.46°) here, the usual slope for strong joints; 1:8 (7.1°) is common in hardwood.
