Dovetail lap splice

What is a dovetail lap splice? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: dovetail splice, dovetail half lap splice, lengthening joint dovetail, empalme cola de milano a media madera, Schwalbenschwanzblatt Längsverbindung

Exact dimensions. True size, with no tolerance added.

length
150.0 mm
width
20.0 mm
height
20.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • Lengthens a member with a half-depth dovetail, so the splice resists pulling apart.

Dovetail lap splice size chart

dimensionvalue
stock20 × 20 mm square
partspart a, part b
dovetail8 mm at the root → 14 mm at the end, 30 mm long, top half
assemblesA drops onto B
holdspulling apart lengthwise; pin it against lifting

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dovetail-lap-splice-joint-part-aMember A with a half-depth dovetail tongueSTEP · STL
dovetail-lap-splice-joint-part-bMember B with the dovetail socket in its top halfSTEP · STL
dovetail-lap-splice-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dovetail-lap-splice-joint

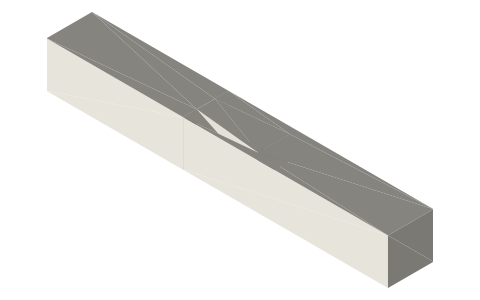

Dovetail lap splice, isometric render of a generated part
Render of dovetail-lap-splice-joint-assembled from the free STEP; not to scale.

Fits with

Questions

How does a dovetail splice differ from a lap splice?

The dovetail shape locks lengthwise; a plain lap needs pins.
