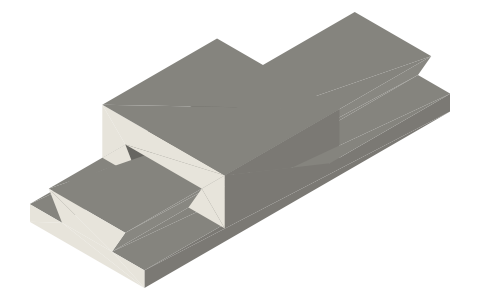

Dovetail rail and slide mount (60°)
What is a dovetail rail mount? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: dovetail rail, dovetail mount, dovetail slide 3d print, accessory rail, sliding mount, riel cola de milano, Schwalbenschwanzführung
Exact dimensions. True size, with no tolerance added.
- length
- 32.0 mm
- width
- 80.0 mm
- height
- 16.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- A sliding dovetail mount for accessories: lights, cameras, tool holders, removable trays. The slide can't lift off, only slide.
Dovetail rail and slide mount size chart
| dimension | value |
|---|---|
| stock | 20 mm rail on a 4 mm plate |
| parts | rail, slide |
| rail | 13.07 mm at the root → 20 mm at the top, 6 mm tall, 60° sides |
| assembles | the slide slides on from the end |
| holds | the slide on the rail in every direction but along it; add a set screw to lock |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| dovetail-rail-mount-rail | Base plate with an 80 mm 60° dovetail rail | STEP · STL |
| dovetail-rail-mount-slide | Slide that runs on the rail | STEP · STL |
| dovetail-rail-mount-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=dovetail-rail-mount

Fits with
Questions
What angle is a dovetail rail?
60° here (sides at 60° to the base); camera rails use 45°–60°.
