Split eccentric strap for Ø30 sheaves, 51 mm to the eye

What does an eccentric strap look like? · Hardware · basis: Ring Ø30 bore × Ø40 OD × 8 with a 1 mm split and a 40 × 10 arm ending in a Ø3 eye

Also called: eccentric strap, eccentric rod strap, split eccentric strap, eccentric strap 30mm

Long Earth Society build part. Quiet displacer and pump drive used on the LES rigs. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
7 in table

Notes

  • A ring Ø30 bore × Ø40 OD × 8 with a 1 mm split through the side opposite the arm, so it goes over the sheave without taking the shaft apart.
  • A 40 × 10 arm ends in a Ø3 eye 51 mm from the ring's centre. Overall 75 × 40 × 8.
  • The Ø30 bore turns on the sheave and a Ø3 pin in the eye drives the next link; fits are under Mating features.

Split eccentric strap for Ø30 sheaves, 51 mm to the eye size chart

featurevalue (mm)
boreØ30
ring ODØ40
thickness8
split1.0
arm40 × 10
eyeØ3 at 51
overall75 × 40 × 8

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
strap boreØ30Ø30 eccentric (turns in it)runeccentric-strap-*
strap split1.0closes on the eccentricclampeccentric-strap-*
strap eyeØ3Ø3 pin (turns in it)runeccentric-strap-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaEccentric (mechanism)webCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig builds on extrusion framesweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
eccentric-strap-d30split strap for the Ø30 eccentrics, Ø30 bore, 40 mm arm with a Ø3 eyeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=eccentric-strap

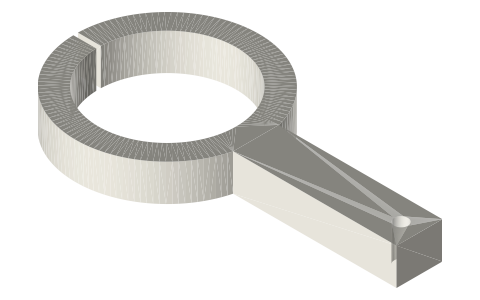

Split eccentric strap for Ø30 sheaves, 51 mm to the eye, isometric render of a generated part
Render of eccentric-strap-d30 from the free STEP; not to scale.

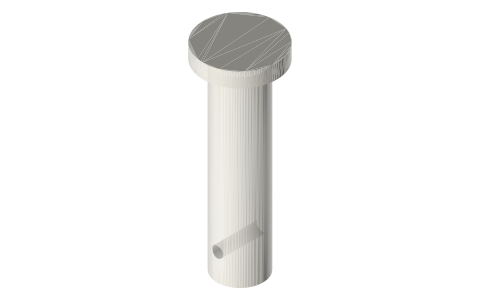

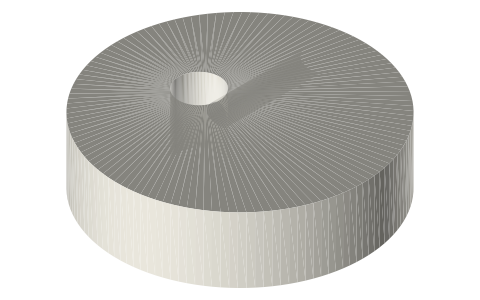

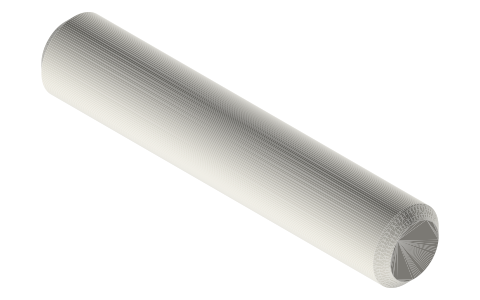

You might also need

Questions

How does the strap go on?

Through the 1 mm split, over the Ø30 sheave.

Where is the strap eye?

Ø3, 51 mm from the strap centre.
