Edge-runner pan Ø160, 8 mm rim, Ø12 centre bore

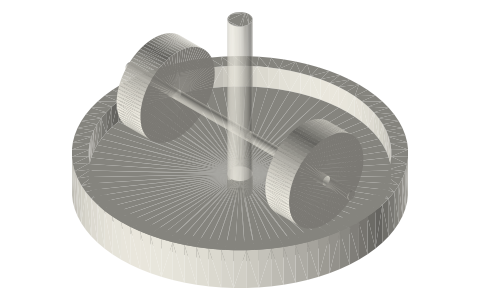

What is the pan of an edge-runner mill? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: mill pan, crushing pan, solera del molino, Kollergangschale

Exact dimensions. True size, with no tolerance added.

length
160.0 mm
width
160.0 mm
height
22.0 mm

Notes

  • Ø160 × 10 base with an 8 mm wide, 12 mm high rim round its edge and a Ø12 bore at the centre for the vertical spindle: the runners roll on its floor on a 50 mm radius.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Edge-runner pan Ø160, 8 mm rim, Ø12 centre bore size chart

dimensionvalue
panØ160 × 10 mm
rim8 wide × 12 high
centre boreØ12

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 375: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
edge-runner-pan-d160pan, floor at z = 0, rim to z 12STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=edge-runner-pan-d160

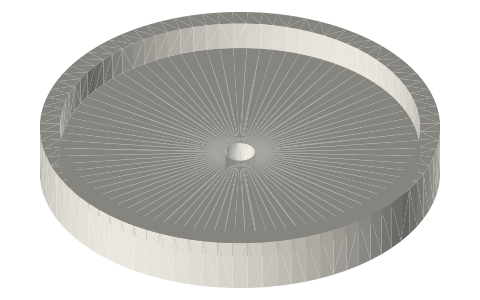

Edge-runner pan Ø160, 8 mm rim, Ø12 centre bore, isometric render of a generated part
Render of edge-runner-pan-d160 from the free STEP; not to scale.

Fits with

Questions

What is the pan of an edge-runner mill?

Ø160 × 10 base with an 8 mm wide, 12 mm high rim round its edge and a Ø12 bore at the centre for the vertical spindle: the runners roll on its floor on a 50 mm radius.
