Edge-runner (chaser) mill: two rollers on one axle rolling round a pan

How does an edge-runner mill crush? · Hardware · basis: Xem Studio design following Brown No. 375 (1868)

Also called: edge runner mill, chaser mill, pan mill, kollergang, molino de muelas verticales, Kollergang

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: runners, track radius, spindle; step to the nearest standard size (and redraw the hole or pocket it fits): pan.
  • Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two heavy wheels on a horizontal axle that passes through a vertical spindle: turning the spindle drags the wheels round the pan, and because a wheel's inner edge travels a shorter circle than its outer edge the rim both rolls and skids — it crushes by weight and grinds by the skid.
  • Drawn with Ø50 × 16 runners at 50 mm radius on a Ø5 × 150 axle, Ø12 spindle, Ø160 pan; each runner touches the pan floor along a line (contact only).
  • Brown's No. 375 (chasers, edge runners, for crushing and mixing); mortar, pigment and gunpowder mills.

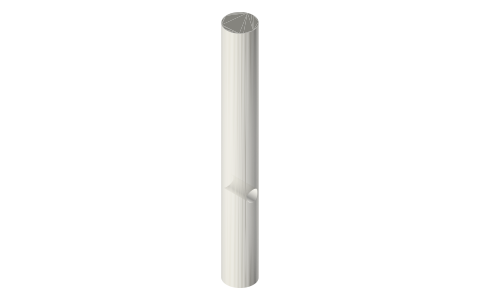

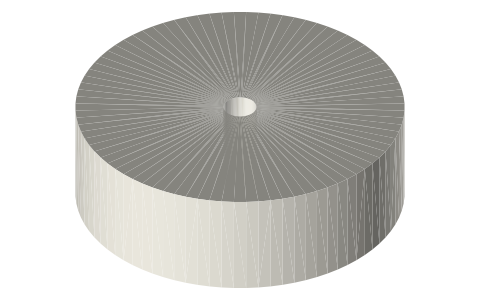

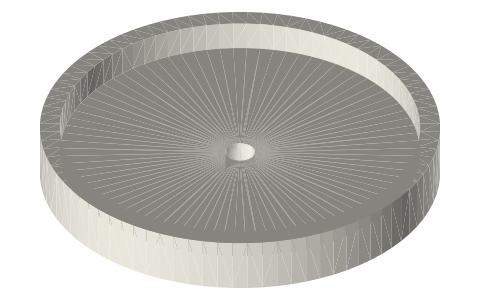

  • Parts (each has its own page): edge-runner-pan-d160, edge-runner-d50x16-b5, edge-runner-spindle-d12x100, linear-shafts-h6.
  • Brown's movement No. 375 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Edge-runner (chaser) mill: two rollers on one axle rolling round a pan size chart

parametervalue
runners2 × Ø50 × 16
track radius50 mm
panØ160
spindleØ12 × 100

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 375: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
edge-runner-mill-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=edge-runner-mill-mechanism

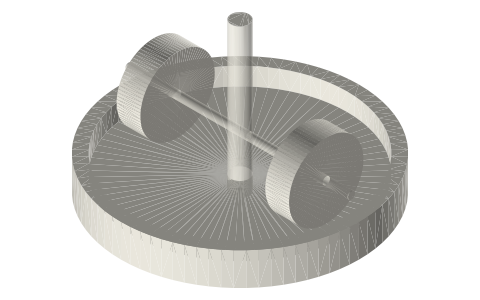

Edge-runner (chaser) mill: two rollers on one axle rolling round a pan, isometric render of a generated part
Render of edge-runner-mill-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does an edge-runner mill crush?

Two heavy wheels on a horizontal axle that passes through a vertical spindle: turning the spindle drags the wheels round the pan, and because a wheel's inner edge travels a shorter circle than its outer edge the rim both rolls and skids — it crushes by weight and grinds by the skid.
